  11. One-Hole Compression Lug, 4 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 5 PK

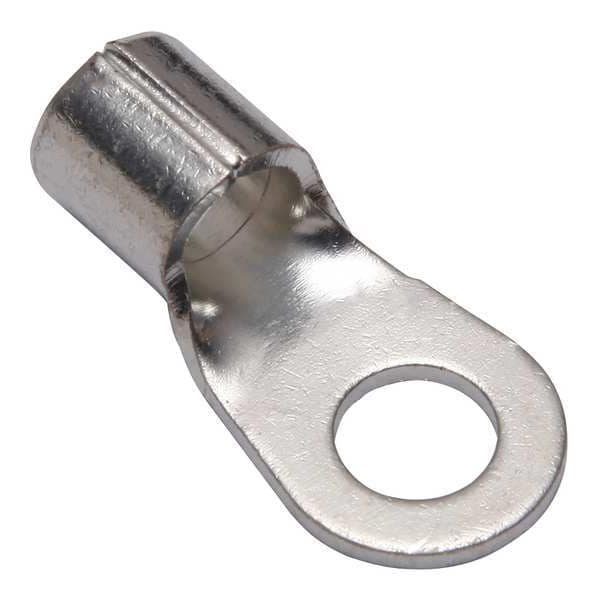

Burndy One-Hole Compression Lug, 4 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 5 PK YAD4CM8E516 - main

One-Hole Compression Lug, 4 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 5 PK

  • Mfr # YAD4CM8E516

  • Zoro # G6108557

product price: $13.69
/pk 5, $2.74/ea

Key Features

For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD4CM8E516
Zoro #
G6108557
UPC #
781810668658
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
4 AWG
For Stud Size
5/16 in
Barrel Size
Long
Tongue Width
0.63 in
Cable Size
4 AWG
Barrel Length
0.43 in
Length
1.3"
Width
0.63"
Tongue Width - Wire Connector
0.63 in
Overall Length
1.3 in
Maximum Wire Size
4 AWG
Strip Length
1/2 in
Hole Diameter
0.33 in
Minimum Wire Size
4 AWG
Barrel Outside Diameter
0.41 in
Tongue Thickness
0.06 in
Tongue Length
0.87 in
Dimension - Pad Width inch
0.63 in
Dimension - Outside Diameter inch
0.41 in
Dimension - L Length Overall mm
33 mm
Dimension - Strip Length inch
1 to 2
Dimension - B Length inch
0.43 in
Dimension - Length Overall inch
1.30 in
Conductor - Copper Str Size
4 AWG
Dimension - Stud Size inch
45062
Dimension - Bolt Size fraction
2023-05-16
Dimension - Hole Size inch
0.33 in
Conductor Size
4 AWG

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1017
Color Code
None
Standards
UL 467
Seam
Brazed
Connection Material
Tin Plater Copper
Plate Material
Tin
Insulation Color
Bare
Tongue Style
Ring
Insulation Type
Non-Insulated
Wire Range
4 AWG
Max. Temp.
302 Degrees F
Connector Type
YAD
Hole Center to End
0.980"
Max. Voltage
600 V
Peep Hole
No
Insulation Material
None
Insulation Coverage
None
Seam Style
Brazed
Terminal Shape
Ring Tongue
RoHS Compliant
Yes
Hole Spacing
0.45 in
Contact Material
Copper
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Contact Finish
Tin
Maximum Voltage
600 V
Compatible with Product Type
Code, Flex Cable
Termination Style
Crimp
Barrel Style
Brazed
Maximum Operating Temperature
302 Degrees F
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Minimum Operating Temperature
302 Degrees F
Type
Ring Tongue
Industry Standard(s)
UL467
Plating Type
Tin
Plated
Y
Physical Attribute - Tongue Type
Ring
Trade Name
HYLUGâ„¢
Conductor Type
CU C Str-SizeCU C Flex-Size
Item Type
3B
Voltage - Maximum
600 V
Feature - Barrel Type
Long
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Termination Style Crimp, Tongue Width 0.63 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.43 in, Barrel Outside Diameter 0.41 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
