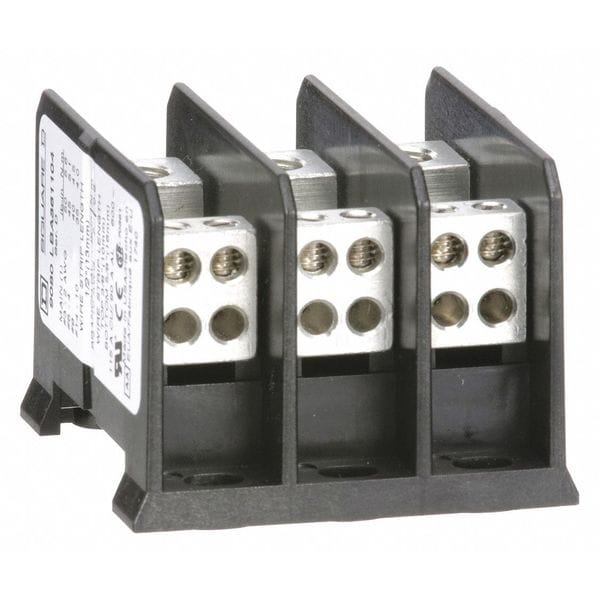

Miniature Power Distribution Block, Open, 3 Pole, 115 A Copper, 600 V AC/DC, Surface Mount
- Mfr # 9080LBA361104
- Zoro # G3557477
CAD Available
product price:Â
$
69.55
/ea
Key Features
CAD Drawing
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
115 A
Maximum Current - Aluminum Conductor
90 A
Maximum Voltage
600 V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9080LBA361104
- Zoro #
- G3557477
- UPC #
- 785901097433
- Country of Origin
- Korea, Republic of
Dimensions
- Depth
- 1.53 in
- Width
- 2.1 in
- Length
- 2.29 in
- Overall Width
- 2.12 in
- For Line Aluminum Wire Size - Maximum
- 2 AWG
- For Line Copper Wire Size - Maximum
- 2 AWG
- For Load Copper Wire Size - Maximum
- 10 AWG
- For Line Copper Wire Size - Minimum
- 14 AWG
- For Load Aluminum Wire Size - Maximum
- 10 AWG
- For Load Aluminum Wire Size - Minimum
- 18 AWG
- For Load Copper Wire Size - Minimum
- 18 AWG
- Overall Depth
- 1.62 in
- For Line Aluminum Wire Size - Minimum
- 14 AWG
- Overall Length
- 2.29 in
- Wire Strip Length
- Line 0.5 in; Load 0.38 in top; Load 0.63 in bottom
- Wire Rope Length
- 2.29 in
Description
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to #2 copper or aluminum wire. Each load side lug is rated to accept one #18 to #10 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.
