  11. One-Hole Compression Lug, 4/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, None

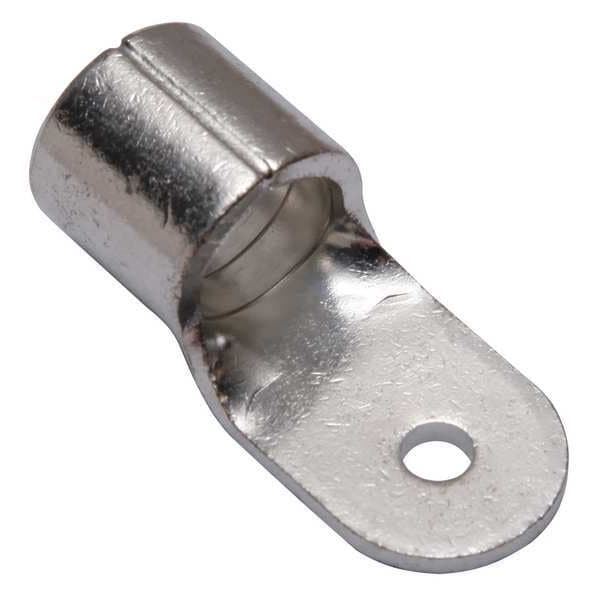

Burndy One-Hole Compression Lug, 4/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, None YAD28M6E14 - main

One-Hole Compression Lug, 4/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, None

  • Mfr # YAD28M6E14

  • Zoro # G6193713

product price: $14.99
/ea

Key Features

Cable Size
4/0 AWG
Connector Type
YAD
Width
0.95"
Material
Copper
Length
2.2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD28M6E14
Zoro #
G6193713
UPC #
781810668351
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
4/0 AWG
Width
0.95"
Length
2.2"
Barrel Length
0.87 in
Overall Length
2.21 in
Tongue Width - Wire Connector
0.95 in
Maximum Wire Size
4/0 AWG
Tongue Width
0.95 in
For Wire Size
4/0 AWG
Tongue Length
1.34 in
Minimum Wire Size
4/0 AWG
Tongue Thickness
0.12 in
Strip Length
1 in
Barrel Outside Diameter
0.89 in
Hole Diameter
0.26 in
Barrel Size
Long
Dimension - Stud Size inch
44930
Dimension - B Length inch
0.87 in
Dimension - Bolt Size fraction
2023-01-04
Dimension - Hole Size inch
0.26 in
Conductor Size
4/0 AWG
Dimension - Pad Width inch
0.95 in
Dimension - Strip Length inch
1 in
Dimension - Outside Diameter inch
0.89 in
Conductor - Copper Str Size
4/0 AWG
Dimension - Length Overall inch
2.21 in
Dimension - L Length Overall mm
56 mm
For Stud Size
1/4 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Connection Material
Tin Plater Copper
Seam
Brazed
Max. Temp.
302 Degrees F
Plate Material
Tin
Die Code
1026
Insulation Color
Bare
Wire Range
4/0 AWG
Insulation Type
Non-Insulated
Item
One-Hole Compression Lug
Hole Center to End
1.730"
Tongue Style
Ring
Peep Hole
No
Max. Voltage
600 V
Standards
UL 467
Compatible with Product Type
Code, Flex Cable
Contact Finish
Tin
Insulation Coverage
None
Hole Spacing
0.86 in
Seam Style
Brazed
Insulation Material
None
Barrel Style
Brazed
Contact Material
Copper
Maximum Operating Temperature
302 Degrees F
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
RoHS Compliant
Yes
Termination Style
Crimp
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Minimum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
Maximum Voltage
600 V
Trade Name
HYLUGâ„¢
Item Type
3B
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Feature - Barrel Type
Long
Conductor Type
CU C Str-SizeCU C Flex-Size
Plated
Y
Voltage - Maximum
600 V
Type
Ring Tongue
Industry Standard(s)
UL467
Physical Attribute - Tongue Type
Ring
Plating Type
Tin
For Conductor Material
Copper
Inspection Hole
No

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 4/0 AWG, Maximum Wire Size 4/0 AWG, Termination Style Crimp, Tongue Width 0.95 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.87 in, Barrel Outside Diameter 0.89 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
