Compression Terminal
- Mfr # YA312LN
- Zoro # G216451716
product price:Â
$
35.99
/ea
Key Features
Strip Length
1 1/8 in
Tongue Style
Standard
Material
Copper
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Barrel Style
Chamfered
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YA312LN
- Zoro #
- G216451716
- UPC #
- 781810505076
- Country of Origin
- United States
- Item
- Compression Terminal
- Tongue Style
- Standard
- Material
- Copper
- Special Features
- Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
- Barrel Style
- Chamfered
- Inspection Hole
- Yes
- Standards
- CSA Certified, UL Listed
- Hole Center to End
- 0.62 in
- For Conductor Material
- Copper
- For Wire Type
- Stranded
- Color Code
- Red
- Contact Finish
- Tin
- Tongue Angle
- Straight
- Hole Center to Center
- 1.75 in
- Maximum Voltage
- 35 kV
- Die Code
- 18, 324
- Termination Style
- Crimp
Description

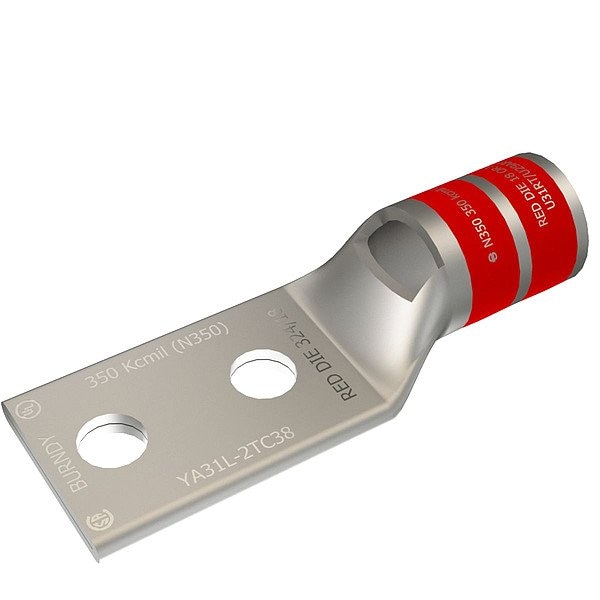

Compression Lug, Barrel Size Standard, Color Code Red, Die Code 18, 324, Tongue Angle Straight, Tongue Width 1.29 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
