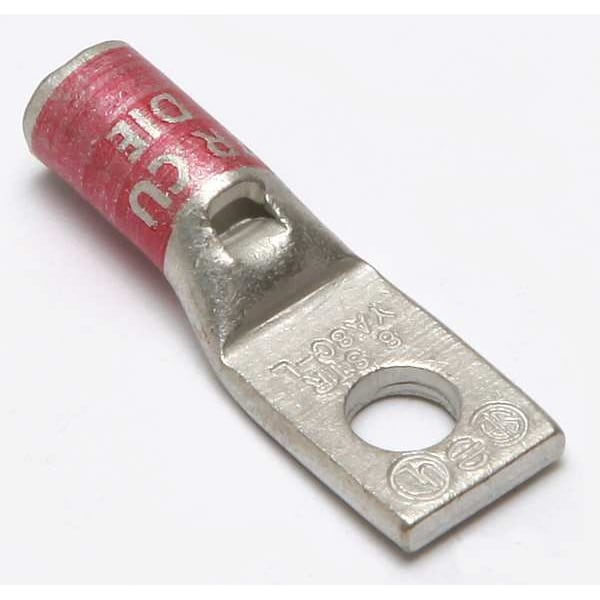

One-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Red
Mfr # YA8CL1BOX
Zoro # G4695862
CAD Available
product price: $3.15
/eaKey Features
CAD Drawing
For Wire Size
8 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA8CL1BOX
Zoro #
G4695862
UPC #
781810555354
Country of Origin
United States
Dimensions
For Wire Size
8 AWG
For Stud Size
1/4 in
Barrel Size
Standard
Tongue Width
0.44 in
Length
1.26"
Cable Size
8 AWG
Width
0.44"
Barrel Length
Short
Overall Length
1.26 in
Overall Width
0.44 in
Length (Straight Wireway)
1.28 in
For Stranded Copper Wire Size - Minimum
8 AWG
Hole Size
0.27 in
For Stranded Copper Wire Size - Maximum
8 AWG
Tongue Thickness
0.08 in
Tongue Length
0.58 in
Barrel Outside Diameter
0.27 in
Strip Length
7/16 in
Conductor - Copper Flex I Size
"8 AWG"
Dimension - D inch
0.58 in
Conductor Size
8 AWG
Dimension - N inch
0.25 in
Conductor - Copper Str Navy Size
23 (7) Navy
Dimension - Bolt Size inch
0.25
Conductor - Copper Str Size
8 AWG
Dimension - Z inch
0.33 in
Conductor - Copper Flex K Size
"8 AWG"
Conductor - Copper Str Navy Size Range
23 (7) Navy
Dimension - Strip Length inch
45123
Dimension - B Length inch
0.44 in
Dimension - Pad Width inch
0.44 in
Dimension - Stud Size fraction
44930
Conductor - Copper Solid Size
6 AWG
Dimension - Hole Size inch
0.27 in
Dimension - Hole Size fraction
2023-01-04
Dimension - L Length Overall mm
32 mm
Conductor - Copper Flex H Size
"8 AWG"
Dimension - Bolt Hole Size inch
0.27 in
Dimension - Stud Size inch
44930
Conductor - Copper Flex M Size
"8 AWG"
Conductor - Copper Str Size Range
8 AWG
Conductor - Copper DLO Size
8 AWG
Dimension - Bolt Size fraction
2023-01-04
Conductor - Copper Str Compact Size
"8 AWG"
Conductor - Copper Solid Size Range
6 AWG
Conductor - Copper Flex G Size
"8 AWG"
Dimension - Length Overall inch
1.26 in
Dimension - Outside Diameter inch
0.27 in
Dimension - Hole Size mm
7 mm
Description
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.44 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
