Shop BURNDY

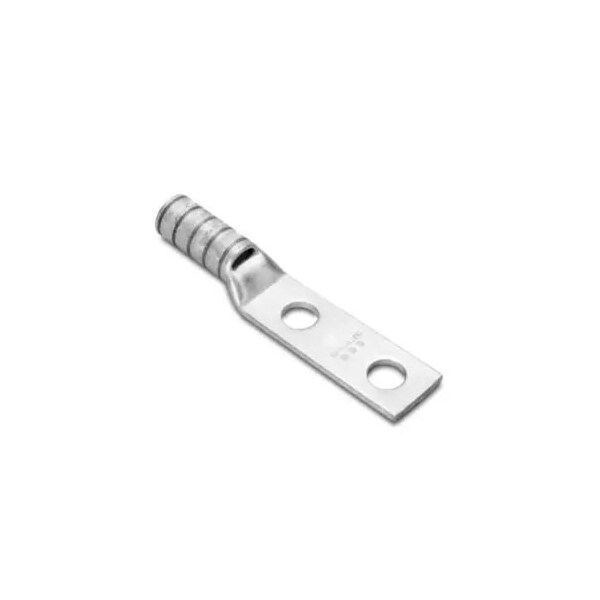

Two-Hole Compression Lug, 6 AWG Max, 1/2 in Stud, Short Barrel, Copper, Blue

  • Mfr # YAV6CL2TC10E9FX

  • Zoro # G0685405

product price:  $8.35
/ea

Key Features

For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Short
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YAV6CL2TC10E9FX
Zoro #
G0685405
UPC #
781810197165
Country of Origin
Unknown

Dimensions

For Wire Size
6 AWG
For Stud Size
1/2 in
Barrel Size
Short
Tongue Width
0.48 in
Conductor - Copper Flex M Size
6 AWG
Dimension - L Length Overall mm
46 mm
Dimension - Pad Width inch
0.48 in
Conductor - Copper Flex K Size
6 AWG
Conductor - Copper Flex I Size
6 AWG
Conductor - Copper Flex G Size
6 AWG
Dimension - Z inch
0.26 in
Dimension - Hole Size inch
0.21 in
Conductor - Copper DLO Size
6 (61/24) DLO
Conductor - Copper Flex G Size Range
6 AWG
Conductor - Copper Solid Size Range
6 AWG
Dimension - N inch
0.25 in
Conductor - Copper Str Size
6 AWG
Dimension - Bolt Hole Size inch
0.21 in
Conductor - Copper Flex H Size Range
6 AWG
Conductor - Copper Str Size Range
6 AWG
Dimension - Hole Size mm
5 mm
Dimension - B Length inch
0.50 in
Conductor - Copper Flex M Size Range
6 AWG
Conductor - Copper Str Navy Size
30 Navy
Conductor - Copper Solid Size
6 AWG
Conductor - Copper Flex K Size Range
6 AWG
Dimension - Strip Length inch
9/16 in
Conductor - CopperWeld Str Size Range
#6 WELD (61/24)
Conductor - Copper Str Navy Size Range
30 Navy
Conductor - Copper Flex H Size
6 AWG
Dimension - Length Overall inch
1.81 in
Conductor - CopperWeld Str Size
#6 WELD (61/24)
Conductor - Copper DLO Size Range
6 (61/24) DLO
Conductor - Copper Flex I Size Range
6 AWG
Dimension - Outside Diameter inch
0.31 in
Dimension - B Length fraction
1/2 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
7, 374
Color Code
Blue
Standards
CSA Approved
Conductor - Material
Copper
Rating - Minimum Voltage
600
Rating - KVA
35 kV
Physical Attribute - Number of Holes
2
Certification - CSA Approved
Yes
Feature - Barrel Type
Standard
Voltage - Maximum
35000
Plated
Y
Type
Standard Barrel, Tin Plated
Plating Type
Tin - Electro Plated
Physical Attribute - Tongue Angle
Straight
Physical Attribute - Tongue Type
Standard
Die Index
7;374
Bolt Hole
1/2 in
Barrel
Short
Number of Holes
2
