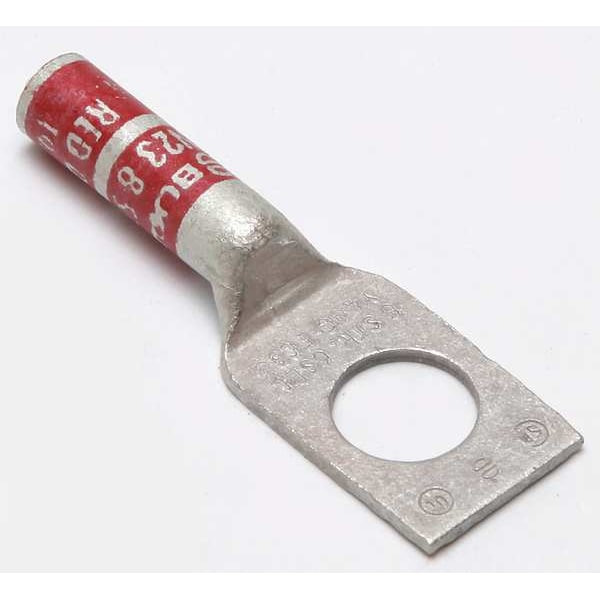

One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, Red
Mfr # YA8CTC38
Zoro # G4679595
CAD Available
product price: $5.55
/eaKey Features
CAD Drawing
Cable Size
8 AWG
Connector Type
Long Barrel
Width
0.58"
Material
Copper
Length
1.88"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA8CTC38
Zoro #
G4679595
UPC #
781810555729
Country of Origin
United States
Dimensions
Cable Size
8 AWG
Width
0.58"
Length
1.88"
Barrel Length
Long
Overall Length
1.88 in
Overall Width
0.59 in
Length (Straight Wireway)
1.88 in
Tongue Width
0.58 in
Strip Length
1 3/16 in
Barrel Size
Long
Tongue Length
0.83 in
Barrel Outside Diameter
0.27 in
For Stranded Copper Wire Size - Maximum
8 AWG
For Stranded Copper Wire Size - Minimum
8 AWG
For Wire Size
8 AWG
For Stud Size
3/8 in
Hole Size
0.4 in
Tongue Thickness
0.06 in
Dimension - B Length inch
0.81 in
Dimension - Outside Diameter inch
0.27 in
Dimension - Stud Size inch
44993
Conductor - Copper Flex H Size
"8 AWG"
Dimension - Length Overall inch
1.88 in
Dimension - N inch
0.41 in
Conductor - Copper Solid Size Range
6 AWG
Dimension - Bolt Size inch
0.38
Dimension - Pad Width inch
0.58 in
Dimension - Hole Size inch
0.40 in
Dimension - Hole Size fraction
2023-03-08
Dimension - Stud Size fraction
2023-03-08
Conductor - Copper Flex M Size
"8 AWG"
Conductor - Copper Flex G Size
"8 AWG"
Conductor - Copper Str Compact Size
"8 AWG"
Conductor - Copper Flex K Size
"8 AWG"
Dimension - Z inch
0.42 in
Dimension - D inch
0.83 in
Conductor - Copper Solid Size
6 AWG
Conductor - Copper Str Navy Size Range
23 (7) Navy
Dimension - Hole Size mm
10 mm
Conductor Size
8 AWG
Conductor - Copper DLO Size
8 AWG
Conductor - Copper Str Size
8 AWG
Conductor - Copper Str Navy Size
23 (7) Navy
Dimension - Bolt Size fraction
2023-03-08
Dimension - L Length Overall mm
48 mm
Conductor - Copper Flex I Size
"8 AWG"
Dimension - Strip Length inch
42372
Conductor - Copper Str Size Range
8 AWG
Dimension - Bolt Hole Size inch
0.39 in
Description
Compression Lug, Barrel Size Long, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
