  11. Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only

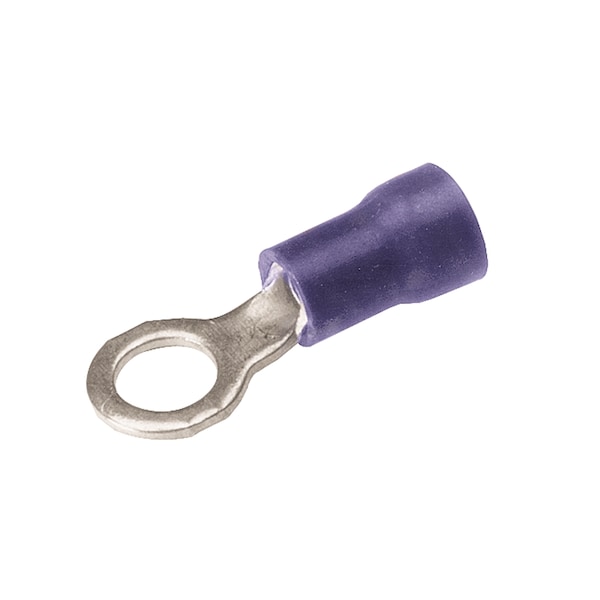

Burndy Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only TP148 - main

Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only

  • Mfr # TP148

  • Zoro # G1112624

product price: $0.57
/ea
Sold in multiples of 14 for $7.98

Key Features

Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
14 AWG
Insulation Type
Vinyl
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TP148
Zoro #
G1112624
UPC #
781810712641
Country of Origin
Unknown

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
14 AWG
Stud Size
#8
Overall Length
0.91 in
Cable Insulation Diameter Maximum
0.190 in
Dimension - Hole Size fraction
17380

Details

Item
Ring Terminal
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Standards
CSA Certified; UL467; UL Listed
Seam
Shrouded
Insulation Dia
0.190 in
Application
For Commercial And Light Duty Industrial Control And Power Circuit Applications
Physical Attribute - Number of Holes
1
Trade Name
VINYLUG™
Physical Attribute - Tongue Type
Ring
Feature - Barrel Style
Shrouded
Certification - CSA Approved
Yes
Plated
Yes
Conductor Type
CU C Solid-SizeCU C Str-Size
Plating Type
Tin
