- MFR #
- KSU31
- Zoro #
- G4682605
- UPC #
- 781810557938
- Country of Origin
- United States

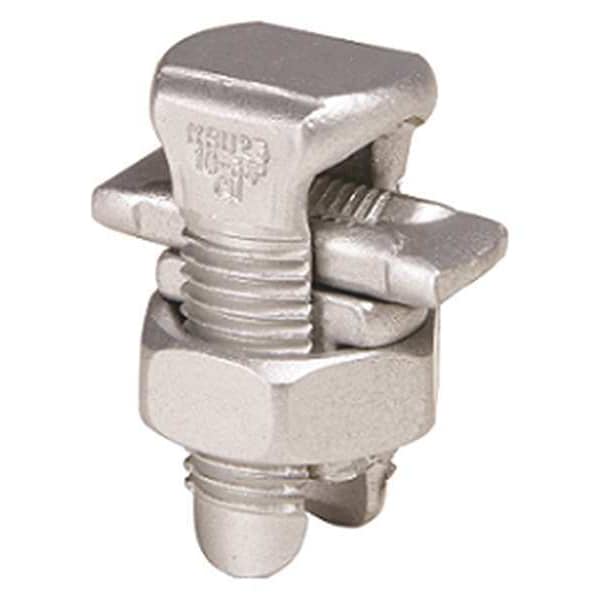

- Item
- Split-Bolt Connector
- Connects
- Copper to Aluminum Wire
- Wire Range w/Equal Main and Tap (AWG)
- 1/0 str to 350 kcmil
- Min. Tap Conductor w/1 Max. Main (AWG)
- 1/0 str
- Material
- Copper Alloy
- Pressure Bar Material
- Copper
- Standards
- CSA Certified, UL Listed 486A Copper Only
- Head Style
- Square Head
- Maximum Voltage
- 35 kV
- Body Finish
- Tin Plated
- Minimum Tap Conductor w/1 Maximum Main (AWG)
- 1/0 AWG str
- For Conductor Material
- Aluminum, Copper, Steel
- Body Material
- Copper
- Special Features
- High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors
- Torque
- 650 in-lb
- Plated
- Yes
- Conductor - AAAC 6201 Tap
- 48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil;155.4 (7) kcmil;195.7 (7) kcmil;246.9 (7) kcmil
- Conductor - AL Str Run
- 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Conductor - Copper Str Run
- 4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - AAAC 5005 Tap
- 48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil;155.4 (7) kcmil;195.7 (7) kcmil;246.9 (7) kcmil
- Conductor - AL Str Run Range
- 1/0AWG - 350 KCMIL
- Conductor - ACSR Str Run
- 3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
- Conductor - AAAC 6201 Run Range
- 195.7 (7) kcmil-246.9 (7) kcmil
- Conductor - AAAC 6201 Tap Range
- 48.69 (7) kcmil-246.9 (7) kcmil
- Conductor - ACSR Str Tap
- 4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
- Conductor - Copper Str Tap
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Tap Range
- 4 AWG - 350 KCMIL
- Trade Name
- SERVIT®
- Conductor - AAAC 5005 Tap Range
- 48.69 (7) kcmil-246.9 (7) kcmil
- Type
- KSU, Universal
- Plating Type
- Tin Plated
- Conductor - AAAC 5005 Run
- 195.7 (7) kcmil;246.9 (7) kcmil
- Conductor - AAAC 6201 Run
- 195.7 (7) kcmil;246.9 (7) kcmil
- Conductor - ACSR Str Tap Range
- 4 AWG - 4/0 AWG
- Application
- For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel
- Connector Type
- Split Bolt
- Conductor - Copper Str Run Range
- 1/0AWG - 350 KCMIL
- UL Listed
- Yes
- Conductor - ACSR Str Run Range
- 3/0 AWG - 4/0 AWG
- Conductor - AAAC 5005 Run Range
- 195.7 (7) kcmil-246.9 (7) kcmil
- Conductor - AL Str Tap Range
- 4 AWG - 350 KCMIL
- Conductor Type
- CU C Solid-RunCU C Str-RunAL C Str-RunAAAC C 5005-RunAAAC C 6201-RunACSR C Str-RunCU C Solid-TapCU C Str-TapAL C Str-TapAAAC C 5005-TapAAAC C 6201-TapACSR C Str-TapGAL Steel C Str-Size
- Conductor - AL Str Tap
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Installation Torque Recommended in-lb
- 650
