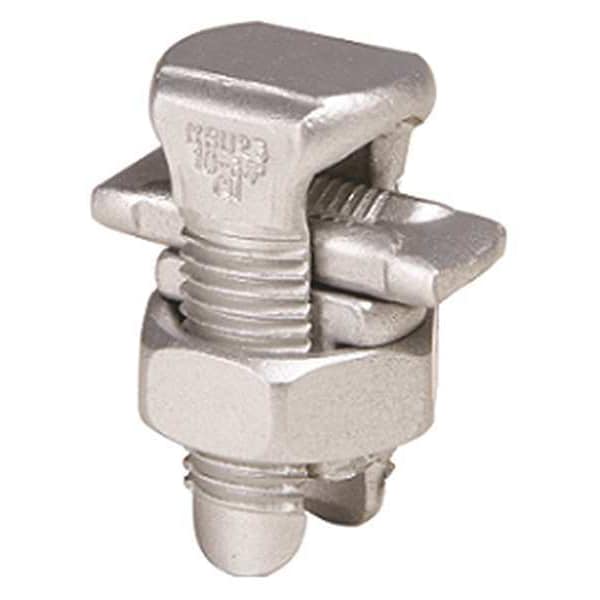

Burndy Split-Bolt Connector, 2 str to 2/0 str KSU26 - main

Split-Bolt Connector, 2 str to 2/0 str

  • Mfr # KSU26

  • Zoro # G4653914

product price: $25.45
/ea

Key Features

Connects
Copper to Aluminum Wire
Wire Range w/Equal Main and Tap (AWG)
2 str to 2/0 str
Min. Tap Conductor w/1 Max. Main (AWG)
8 str
Material
Copper Alloy
Pressure Bar Material
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KSU26
Zoro #
G4653914
UPC #
781810557877
Country of Origin
United States

Dimensions

Overall Width
0.79 in
For Maximum Run Wire Size
2/0 AWG
For Minimum Run Wire Size
2 AWG
Overall Length
1.95 in
For Maximum Tap Wire Size
2/0 AWG
For Minimum Tap Wire Size
8 AWG
Hex Nut Size
1.04 in
Width
0.79 in
Conductor - Galvanized Steel Str Size Range
7/16 (7) in
Dimension - Cross Flats inch
1.04 in
Conductor - Galvanized Steel Str Size
7/16 (7) in
Dimension - L Length Overall mm
49 mm
Dimension - Width mm
20 mm
Dimension - Length Overall inch
1.95
Dimension - Width inch
0.79 in

Details

Item
Split-Bolt Connector
Connects
Copper to Aluminum Wire
Wire Range w/Equal Main and Tap (AWG)
2 str to 2/0 str
Min. Tap Conductor w/1 Max. Main (AWG)
8 str
Material
Copper Alloy
Pressure Bar Material
Copper
Standards
CSA Certified, UL Listed 486A Copper Only
Head Style
Square Head
Minimum Tap Conductor w/1 Maximum Main (AWG)
8 AWG str
Maximum Voltage
35,000 V
Special Features
High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors
Compatible with Product Type
Split Bolt Covers
Compatible with Series
Servit
Body Finish
Tin Plated
Body Material
Copper
Torque
385 in-lb
RoHS Compliant
Yes
For Conductor Material
Aluminum, Copper, Steel
Compatible Manufacturer Model Number
SC2/0
Plating Type
Tin Plated
Plated
Yes
Conductor - AAAC 5005 Tap
30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
Conductor - ACSR Str Run Range
1 AWG - 1/0 AWG
Conductor - AL Str Tap Range
8 AWG - 2/0 AWG
Conductor - AAAC 5005 Run
123.3 (7) kcmil
Conductor - AAAC 6201 Tap Range
30.58 (7) kcmil-123.3 (7) kcmil
Conductor - Copper Solid Run
22
Conductor - AAAC 6201 Run
123.3 (7) kcmil
Conductor - ACSR Str Tap
6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
Conductor - ACSR Str Run
1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
Conductor - Copper Solid Run Range
22
Conductor - Copper Str Tap
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
Conductor - ACSR Str Tap Range
6 AWG - 1/0 AWG
Conductor - AL Str Run
2 AWG;1 AWG;1/0 AWG;2/0 AWG
Conductor - AL Str Tap
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
Conductor Type
CU C Solid-RunCU C Str-RunAL C Str-RunAAAC C 5005-RunAAAC C 6201-RunACSR C Str-RunCU C Solid-TapCU C Str-TapAL C Str-TapAAAC C 5005-TapAAAC C 6201-TapACSR C Str-TapGAL Steel C Str-Size
Type
KSU, Universal
Conductor - Copper Str Run Range
2 AWG - 2/0 AWG
Conductor - AAAC 5005 Tap Range
30.58 (7) kcmil-123.3 (7) kcmil
Application
For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel
Trade Name
SERVIT®
Conductor - AAAC 6201 Tap
30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
Installation Torque Recommended in-lb
385
Conductor - AAAC 5005 Run Range
123.3 (7) kcmil
Conductor - AL Str Run Range
2 AWG - 2/0 AWG
UL Listed
Yes
Conductor - Copper Str Run
2 AWG;1 AWG;1/0 ;2/0 AWG
Connector Type
Split Bolt
Conductor - AAAC 6201 Run Range
123.3 (7) kcmil
Conductor - Copper Str Tap Range
8 AWG - 2/0 AWG

Description

Split-Bolt Connector, Body Finish Tin Plated, Body Material Copper, For Conductor Material Aluminum, Copper, Steel, For Minimum Run Wire Size 2 AWG, For Maximum Run Wire Size 2/0 AWG, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 2/0 AWG, Head Style Square Head, Hex Nut Size 1.04 in, Maximum Voltage 35 kV, Torque 385 in-lb, Compatible Manufacturer Model Number SC2/0, Overall Length 1.95 in, Overall Width 0.79 in, RoHS Compliant Yes
