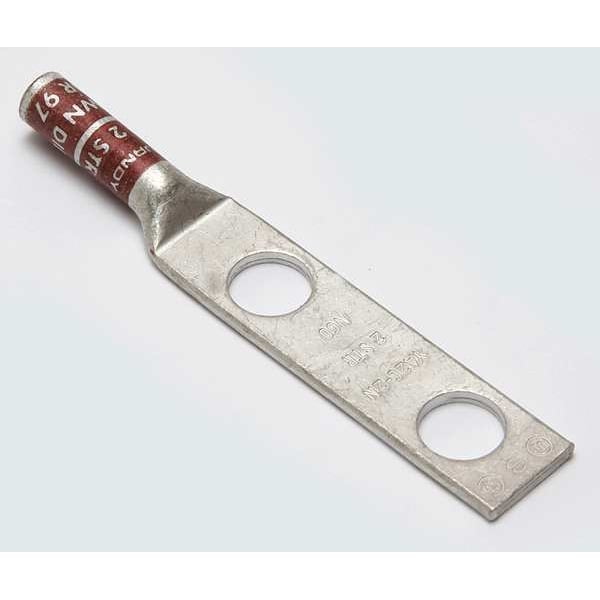

Two-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, Brown
Mfr # YA2C2N
Zoro # G4706107
CAD Available
product price: $11.65
/eaKey Features
CAD Drawing
For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA2C2N
Zoro #
G4706107
UPC #
781810559741
Country of Origin
United States
Dimensions
For Wire Size
2 AWG
For Stud Size
1/2 in
Barrel Size
Long
Tongue Width
0.83 in
Barrel Length
Long
Length
4.64"
Cable Size
2 AWG
Width
0.83"
Overall Length
4.64 in
Overall Width
0.83 in
Length (Straight Wireway)
4.65 in
Tongue Thickness
0.12 in
Tongue Length
1.27 in
Barrel Outside Diameter
0.42 in
For Stranded Copper Wire Size - Minimum
2 AWG
Hole Size
0.56 in
Strip Length
1 5/16 in
For Stranded Copper Wire Size - Maximum
2 AWG
Dimension - Hole Size fraction
1 to 2
Dimension - Bolt Hole Size inch
0.52 in
Conductor Size
2 AWG
Dimension - B Length inch
1.25 in
Conductor - Copper Str Size Range
2 AWG
Conductor - Copper Str Navy Size
60 (37) Navy
Dimension - Stud Size fraction
1 to 2
Dimension - Strip Length inch
42374
Dimension - Hole Size inch
0.56 in
Dimension - Stud Size inch
1 to 2
Conductor - Copper Str Size
2 AWG
Dimension - Pad Width inch
0.83 in
Dimension - Bolt Size inch
0.5
Dimension - L Length Overall mm
118 mm
Dimension - Length Overall inch
4.64 in
Dimension - N inch
0.63 in
Dimension - Z inch
0.64 in
Dimension - Hole Size mm
14 mm
Dimension - D inch
3.02 in
Dimension - Outside Diameter inch
0.42 in
Dimension - Bolt Size fraction
1 to 2
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
