CAD Viewer & Download Files

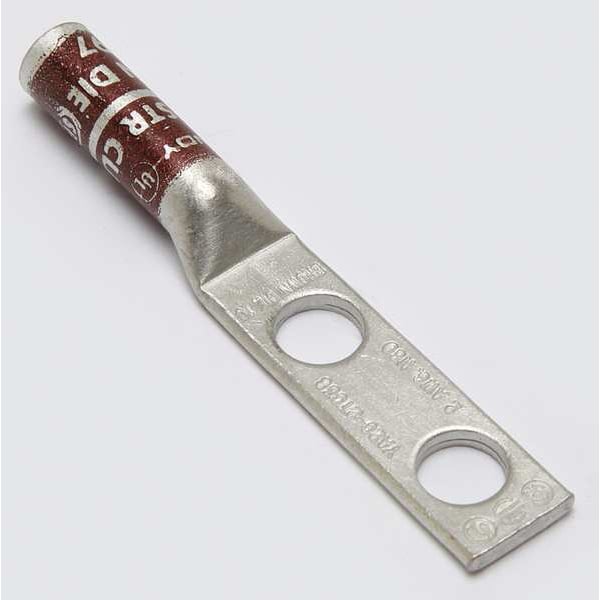

Two-Hole Compression Lug, 2 AWG Max, 3/8 in Stud, Long Barrel, Copper, Brown
Mfr # YA2C2TC38
Zoro # G4668185
CAD Available
product price: $12.35
/eaKey Features
CAD Drawing
For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA2C2TC38
Zoro #
G4668185
UPC #
781810555675
Country of Origin
United States
Dimensions
For Wire Size
2 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.60 in
Cable Size
2 AWG
Width
0.6"
Barrel Length
Long
Length
3.42"
Overall Width
0.61 in
Overall Length
3.42 in
Length (Straight Wireway)
3.42 in
For Stranded Copper Wire Size - Maximum
2 AWG
Tongue Length
0.84 in
Strip Length
1 5/16 in
For Stranded Copper Wire Size - Minimum
2 AWG
Hole Size
0.4 in
Tongue Thickness
0.11 in
Barrel Outside Diameter
0.42 in
Dimension - Pad Width inch
0.60 in
Dimension - Outside Diameter inch
0.42 in
Dimension - L Length Overall mm
87 mm
Dimension - B Length inch
1.25 in
Dimension - Hole Size mm
10 mm
Conductor Size
2 AWG
Dimension - Bolt Size fraction
2023-03-08
Conductor - Copper Str Size
2 AWG
Conductor - Copper Str Size Range
2 AWG
Conductor - Copper Solid Size Range
2 AWG
Dimension - Stud Size inch
44993
Dimension - Strip Length inch
42374
Dimension - N inch
0.41 in
Dimension - Stud Size fraction
2023-03-08
Dimension - Length Overall inch
3.42 in
Dimension - Bolt Size inch
0.38
Dimension - Z inch
0.43 in
Dimension - Bolt Hole Size inch
0.39 in
Conductor - Copper Solid Size
2 AWG
Dimension - Hole Size inch
0.40 in
Dimension - D inch
1.84 in
Conductor - Copper Str Navy Size
60 (37) Navy
Dimension - Hole Size fraction
2023-03-08
Description
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
