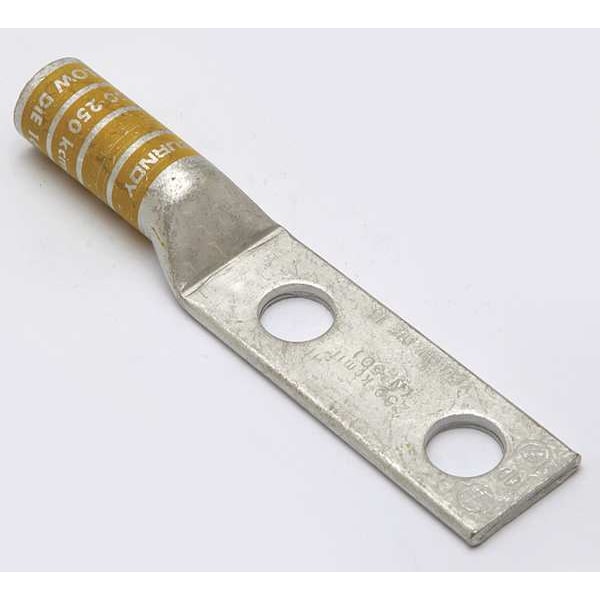

Two-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Yellow
Mfr # YA292N
Zoro # G4676095
CAD Available
product price: $22.15
/eaKey Features
CAD Drawing
For Wire Size
250 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA292N
Zoro #
G4676095
UPC #
781810559772
Country of Origin
United States
Dimensions
For Wire Size
250 kcmil
For Stud Size
1/2 in
Barrel Size
Long
Tongue Width
1.11 in
Cable Size
250 kcmil
Barrel Length
Long
Width
1.11"
Length
5.21"
Overall Width
1.11 in
Overall Length
5.21 in
Length (Straight Wireway)
5.21 in
Strip Length
1 11/16 in
Tongue Length
1.27 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Hole Size
0.56 in
Tongue Thickness
0.16 in
For Stranded Copper Wire Size - Minimum
250 kcmil
Barrel Outside Diameter
0.75 in
Dimension - Bolt Size fraction
1 to 2
Dimension - Hole Size mm
14 mm
Dimension - Length Overall inch
5.21 in
Conductor - Copper Str Navy Size
250 (61) Navy
Dimension - Stud Size inch
1 to 2
Dimension - Hole Size fraction
1 to 2
Dimension - Stud Size fraction
1 to 2
Dimension - Pad Width inch
1.11 in
Dimension - Strip Length inch
42380
Conductor - Copper Str Size Range
250 KCMIL
Dimension - Z inch
0.64 in
Conductor Size
250 KCMIL
Dimension - Outside Diameter inch
0.75 in
Dimension - B Length fraction
1-5/8 in
Dimension - Bolt Hole Size inch
0.52 in
Dimension - L Length Overall mm
132 mm
Dimension - N inch
0.63 in
Conductor - Copper Str Size
250 kcmil
Dimension - Hole Size inch
0.56 in
Dimension - B Length inch
1.62 in
Dimension - Bolt Size inch
0.5, 0.5
Description
Compression Lug, Barrel Size Long, Color Code Yellow, Die Code 16, Tongue Angle Straight, Tongue Width 1.11 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
