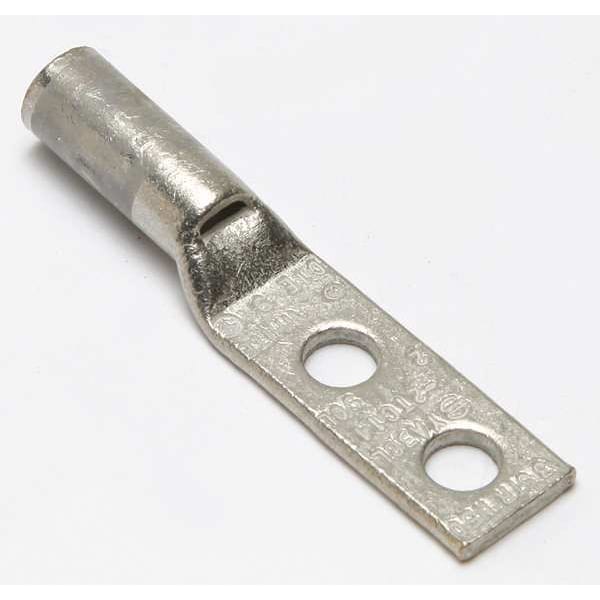

Two-Hole Compression Lug, 3 AWG Max, 1/4 in Stud, Short Barrel, Copper, White
Mfr # YA3CL2TC14
Zoro # G4697777
product price:Â
$
10.99
/ea
Key Features
For Wire Size
3 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Short
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA3CL2TC14
- Zoro #
- G4697777
- UPC #
- 781810559628
- Country of Origin
- United States
Dimensions
- For Wire Size
- 3 AWG
- For Stud Size
- 1/4 in
- Barrel Size
- Short
- Tongue Width
- 0.55 in
- Cable Size
- 3 AWG
- Length
- 2.45"
- Width
- 0.55"
- Barrel Length
- Short
- Overall Width
- 0.55 in
- Outside Diameter
- 0.38 in
- Overall Length
- 2.45 in
- Length (Straight Wireway)
- 2.46 in
- Tongue Thickness
- 0.09 in
- Strip Length
- 15/16 in
- Barrel Outside Diameter
- 0.38 in
- Tongue Length
- 0.64 in
- Hole Size
- 0.27 in
- For Stranded Copper Wire Size - Maximum
- 3 AWG
- For Stranded Copper Wire Size - Minimum
- 3 AWG
- Dimension - Hole Size fraction
- 2023-01-04
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - N inch
- 0.31 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Stud Size fraction
- 2023-01-04
- Dimension - Strip Length inch
- 15/16
- Dimension - Stud Size inch
- 44930
- Dimension - Bolt Size fraction
- 2023-01-04
- Dimension - Hole Size mm
- 7 mm
- Conductor Size
- 3 AWG
- Dimension - Length Overall inch
- 2.45 in
- Conductor - Copper Solid Size
- 2 AWG
- Dimension - L Length Overall mm
- 62 mm
- Bolt Size
- 1/4 in
- Dimension - Pad Width inch
- 0.55 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - Z inch
- 0.33 in
- Dimension - Bolt Size inch
- 0.25
- Dimension - B Length inch
- 0.88 in
- Dimension - B Length fraction
- 7/8 in
- Conductor - Copper Str Size
- 3 AWG
- Conductor - Copper Str Navy Size
- 50 (19) Navy
- Conductor - Copper Str Size Range
- 3 AWG
- Wire Rope Length
- 2.45 in
Description
Compression Lug, Barrel Size Standard, Color Code White, Die Code 9, Tongue Angle Straight, Tongue Width 0.55 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 3 AWG, For Stranded Copper Wire Size - Maximum 3 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
