  11. Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Blue

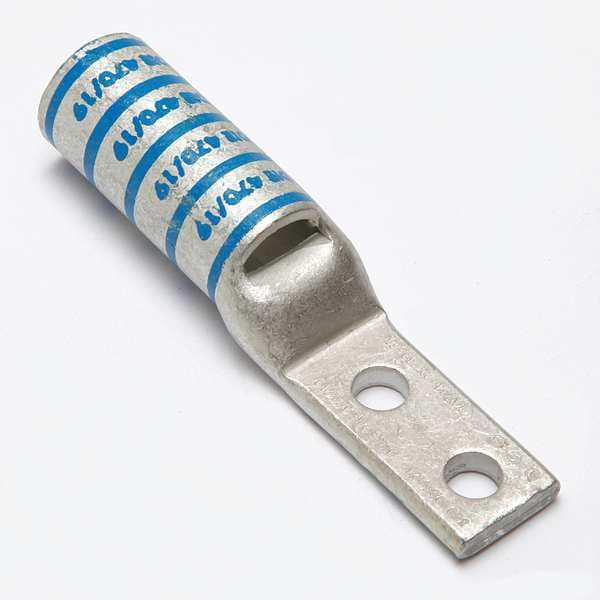

Burndy Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Blue YAZ342NT38FX - main

Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Blue

  • Mfr # YAZ342NT38FX

  • Zoro # G4700726

product price: $61.15
/ea

Key Features

For Wire Size
350 kcmil
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAZ342NT38FX
Zoro #
G4700726
UPC #
781810559901
Country of Origin
United States

Dimensions

For Wire Size
350 kcmil
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.96 in
Barrel Length
Long
Cable Size
350 kcmil
Width
0.96"
Length
4.85"
Overall Length
4.85 in
Overall Width
0.96 in
Length (Straight Wireway)
4.86 in
Strip Length
2 5/16 in
Barrel Outside Diameter
1.06 in
Tongue Thickness
0.23 in
Hole Size
0.39 in
Tongue Length
0.84 in
For Stranded Copper Wire Size - Maximum
500 kcmil
For Stranded Copper Wire Size - Minimum
350 kcmil
Dimension - L Length Overall mm
123 mm
Dimension - Hole Size mm
10.4 mm
Conductor - Copper Flex H Size Range
350 kcmil
Dimension - Bolt Hole Size inch
0.39 in
Conductor - Copper Flex G Size Range
350 kcmil
Dimension - Diameter Min Size inch
1.84 in
Conductor - Copper Flex G Size
350 kcmil
Dimension - Z inch
0.43 in
Dimension - Bolt Size inch
0.38
Dimension - Stud Size inch
3/8 in
Conductor - Copper Flex I Size
350 kcmil
Conductor - Copper Flex K Size
350 kcmil
Dimension - Stud Size fraction
2023-03-08
Dimension - Pad Width inch
0.96 in
Conductor - Copper Str Size Range
350 kcmil
Conductor - Copper Flex I Size Range
350 kcmil
Dimension - B Length fraction
2-1/4 in
Dimension - Hole Size inch
0.41
Dimension - Length Overall inch
4.85 in
Dimension - Bolt Size fraction
44993
Dimension - Outside Diameter inch
1.06 in
Dimension - Hole Size fraction
2023-03-08
Conductor - Copper Flex H Size
350 kcmil
Conductor - Copper Flex K Size Range
350 kcmil
Dimension - Length Side B inch
4.85 in
Conductor Size
350 kcmil
Dimension - N inch
0.41 in
Dimension - Strip Length inch
42405
Conductor - Copper Flex M Size
350 kcmil
Conductor - Copper DLO Size Range
373 kcmil
Conductor - Copper DLO Size
373.7 (925/#24) DLO
Dimension - B Length inch
2.25 in
Conductor - Copper Str Size
350 KCMIL

Description

Compression Lug, Barrel Size Long, Color Code Blue, Die Code 19, Tongue Angle Straight, Tongue Width 0.96 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
