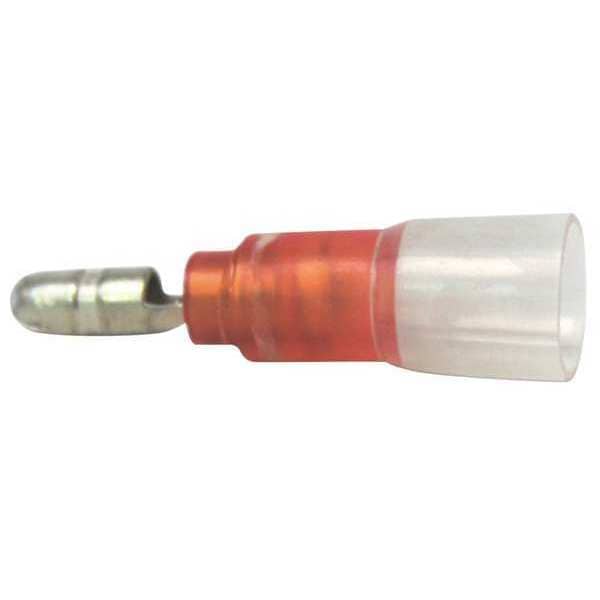

Male Disconnect, Red, 22-18AWG, PK10, Insulation: Full
- Mfr # 30169
- Zoro # G5367616
product price:Â
$
9.89
/pk of 10, $0.99/ea
Key Features
Insulation
Full
Insulation Color
Red
Insulation Type
Heat Shrink
Connection Type
Crimp
Wire Range
22 to 18 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 30169
- Zoro #
- G5367616
- UPC #
- 728974161021
- Country of Origin
- United States
- Item
- Wire Disconnect
- Insulation
- Full
- Insulation Color
- Red
- Insulation Type
- Heat Shrink
- Connection Type
- Crimp
- Wire Range
- 22 to 18 AWG
- Seam
- Brazed
- Max. Temp.
- 90 Degrees F
- Max. Voltage
- 600V
- Connection Material
- Copper
- Standards
- UL Listed
- Maximum Voltage
- 600 V
- RoHS Compliant
- Yes
- Seam Style
- Brazed
- Termination Style
- Crimp
- Special Features
- Adhesive Lining, CNS Extreme Waterproof Wire Terminals, Polyolefin Shrink Tubing Which Allows a Complete Environment and An Abrasion Resistant Seal
- Insulation Coverage
- Full Coverage
- Contact Material
- Copper
- Insulation Material
- Nylon with Heat Shrink
- Terminal Type
- Tab
- Maximum Operating Temperature
- 90 Degrees F
- Disconnect Style
- Bullet Disconnect
- Contact Finish
- Tin
Dimensions
- Tab Size
- 0.156 in
- Overall Length
- 1.35 in
- Barrel Inside Dia.
- 0.062 in
- Barrel Inside Diameter
- 0.062 in
- Tab Thickness
- 0.032 in
- Minimum Wire Size
- 22 AWG
- Maximum Wire Size
- 18 AWG
- Tab Width
- 0.156 in
- Wire Rope Length
- 1.35 in
- Length
- 1.35 in
Description
Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Bullet Disconnect, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon with Heat Shrink, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.156 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards UL Listed, Barrel Inside Diameter 0.062 in
