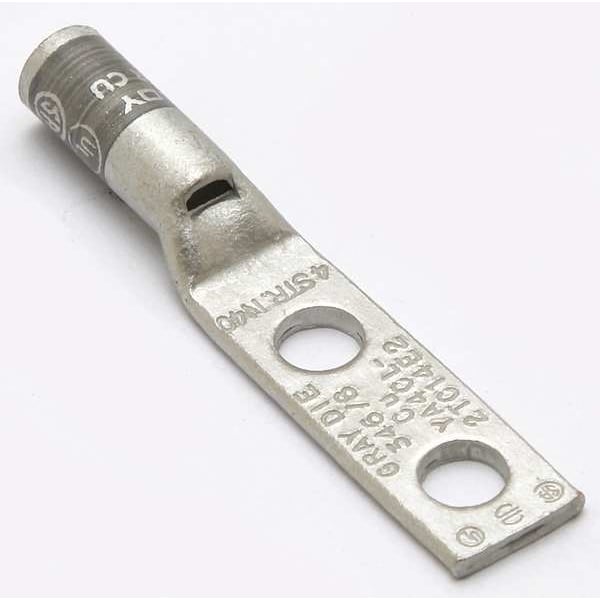

Two-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Gray
- Mfr # YA4CL2TC14E2
- Zoro # G4680541
product price:Â
$
9.89
/ea
Key Features
For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA4CL2TC14E2
- Zoro #
- G4680541
- UPC #
- 781810559604
- Country of Origin
- United States
Dimensions
- For Wire Size
- 4 AWG
- For Stud Size
- 1/4 in
- Barrel Size
- Standard
- Tongue Width
- 0.5 in
- Cable Size
- 4 AWG
- Length
- 2.49"
- Barrel Length
- Short
- Width
- 1/2"
- Overall Width
- 0.51 in
- Overall Length
- 2.49 in
- Length (Straight Wireway)
- 2.49 in
- Barrel Outside Diameter
- 0.34 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- Tongue Thickness
- 0.09 in
- Hole Size
- 0.33 in
- For Stranded Copper Wire Size - Minimum
- 4 AWG
- Strip Length
- 7/8 in
- Tongue Length
- 0.64 in
- Conductor - Copper Str Size
- #4 AWG
- Dimension - Hole Size inch
- 0.33 in
- Conductor - Copper Str Navy Size
- 40 (19) Navy
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy
- Conductor Size
- 4 AWG
- Conductor - Copper Str Size Range
- 4 AWG
- Dimension - Z inch
- 0.33
- Dimension - D inch
- 1.39 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Outside Diameter inch
- 0.34 in
- Conductor - Copper Solid Size
- #4 AWG
- Dimension - L Length Overall mm
- 63 mm
- Dimension - B Length fraction
- 13/16 in
- Dimension - Length Overall inch
- 2.49 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - Pad Width inch
- 0.5 in
- Dimension - Bolt Size inch
- 0.25
- Dimension - Bolt Size fraction
- 2023-01-04
- Dimension - Stud Size fraction
- 2023-01-04
- Dimension - B Length inch
- 0.81 in
- Dimension - N inch
- 0.31 in
- Dimension - Hole Size fraction
- 2023-01-04
- Dimension - Stud Size inch
- 44930
- Dimension - Strip Length inch
- 7/8 in
- Wire Rope Length
- 2.49 in
Description
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 0.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
