  11. Two-Hole Compression Lug, 4/0 AWG Max, Long Barrel, Copper, Purple

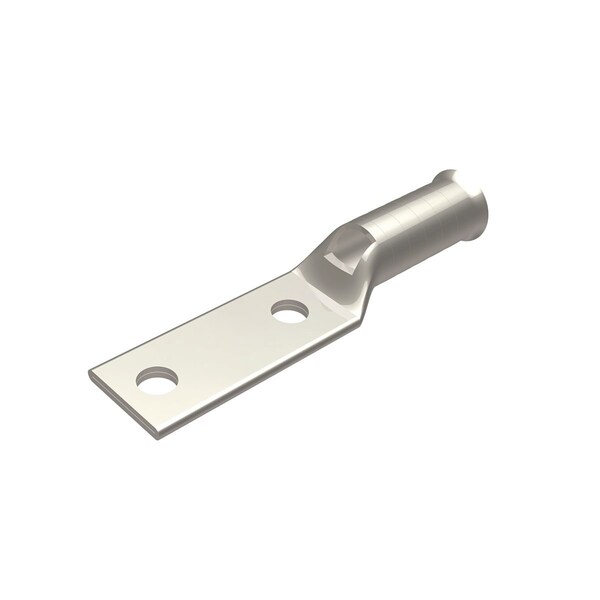

Burndy Two-Hole Compression Lug, 4/0 AWG Max, Long Barrel, Copper, Purple YAZV282TC38FXB - main

Two-Hole Compression Lug, 4/0 AWG Max, Long Barrel, Copper, Purple

  • Mfr # YAZV282TC38FXB

  • Zoro # G805778279

product price: $23.89
/ea
Sold in multiples of 10 for $238.90

Key Features

Material
Copper
Color Code
Purple
Die Code
15
Standards
UL 486A-486B
Conductor - Copper Flex K Size Range
4/0 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAZV282TC38FXB
Zoro #
G805778279
UPC #
-
Country of Origin
United States

Dimensions

Conductor - Copper Flex K Size Range
4/0 AWG
Dimension - Length Overall inch
4.18 in
Conductor - Copper Flex G Size Range
4/0 AWG
Conductor - Copper Flex G Size
4/0 AWG
Conductor - Copper Flex K Size
4/0 AWG
Dimension - N inch
0.41 in
Conductor - Copper Flex H Size
4/0 AWG
Dimension - B Length inch
1.77 in
Dimension - Hole Size mm
10 mm
Conductor - Copper Flex M Size
4/0 AWG
Conductor - Copper Flex I Size Range
4/0 AWG
Dimension - Z inch
0.43 in
Dimension - Pad Width inch
1.14 in
Conductor - Copper Flex H Size Range
4/0 AWG
Dimension - Inside Diameter inch
0.63 in
Dimension - Outside Diameter inch
0.77 in
Dimension - L Length Overall mm
106 mm
Conductor - Copper Flex I Size
4/0 AWG
Dimension - Hole Size inch
0.41 in
Conductor - Copper Flex M Size Range
4/0 AWG
Conductor - Copper DLO Size Range
4/0 (550/#24) DLO
Dimension - B Length fraction
1-3/4 in
Conductor - Copper DLO Size
4/0 (550/#24) DLO
Dimension - Bolt Size inch
0.38
Conductor - Copper Str Size
"4/0 AWG"
Dimension - Hole Size fraction
2023-03-08
Dimension - Stud Size fraction
2023-03-08
Conductor - Copper Str Size Range
4/0 AWG
Dimension - Bolt Size fraction
2023-03-08
Conductor - Copper Str Compact Size
"4/0 AWG"
Conductor Size
4/0 AWG
Conductor - Copper Str Navy Size
200
For Wire Size
4/0 AWG
Barrel Size
Long
Tongue Width
1.14 in

Details

Material
Copper
Color Code
Purple
Die Code
15
Standards
UL 486A-486B
Item
Two-Hole Compression Lug
Physical Attribute - Tongue Angle
Straight
Plated
Y
Feature - Barrel Type
Long
Plating Type
Tin - Electro Plated
Type
Long Barrel, Skive
Feature - Barrel Style
Belled
Rating - KVA
35 kV
Application
For Flex Conductors
Conductor - Material
Copper
Physical Attribute - Number of Holes
2
Voltage - Maximum
35000
Rating - Minimum Voltage
600
Conductor Type
CODE/FLEX
Voltage Rating
35 kV
Certification - CSA Approved
Yes
Finish Type
Tin-Plated
UL Listed
Yes
Die Index
15
Industry Standard(s)
UL 486A-486B
Trade Name
HYLUGâ„¢
For Conductor Material
Copper
Tongue Angle
Straight
Number of Holes
2

Description

Tin Plated

Restrictions
