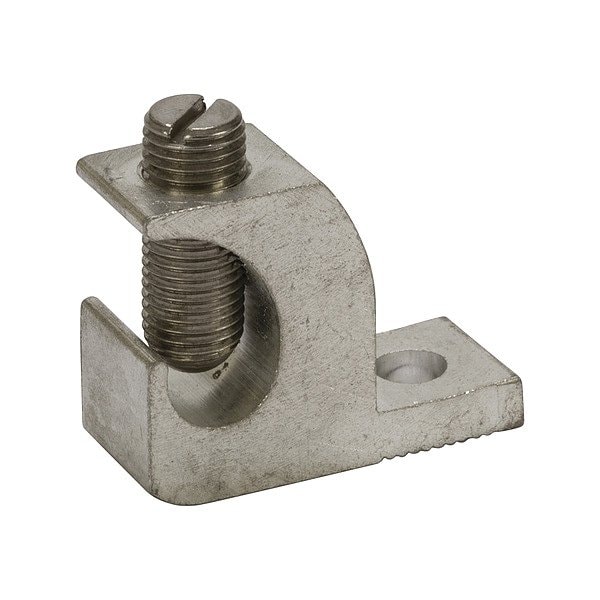

MechanicalConnector, Aluminum, Hex, 600V
Mfr # GLA-0
Zoro # G616286833
product price:Â $2.89
/eaKey Features
For Conductor Material
Aluminum, Copper
Number of Conductors
1
Body Material
Aluminum, Copper
Contact Finish
Tin
Maximum Voltage
600 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- GLA-0
- Zoro #
- G616286833
- UPC #
- 662381001917
- Country of Origin
- India
Dimensions
- For Stranded Copper Wire Size - Minimum
- 8 AWG
- For Stranded Copper Wire Size - Maximum
- 1/0 AWG
- Overall Length
- 1.5 in
- Overall Depth
- 5/8 in
- Overall Width
- 1.1 in
- Tongue Width
- 1.1 in
- Hole Diameter
- 0.27 in
- Wire Rope Length
- 1.5 in
Details
- Item
- Mechanical Lug
- For Conductor Material
- Aluminum, Copper
- Number of Conductors
- 1
- Body Material
- Aluminum, Copper
- Contact Finish
- Tin
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 194 Degrees F
- Standards
- UL 486B
- Head Style
- Slotted
- Compatible with Product Type
- Conductors
- Torque
- 120 in-lb
- Number of Pieces
- 40
- Special Features
- Electro-Tin Plated for Low Contact Resistant
- Color
- Bare
- Connector Type
- Dual Rated Connector
- Connection Orientation
- Dual Rated Lug
Description
Mechanical Connectors, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Slotted, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Connector Type Dual Rated Connector, Standards UL 486B, Compatible with Product Type Conductors, Connection Orientation Dual Rated Lug, Contact Finish Tin, Number of Pieces 40, Overall Depth 5/8 in
