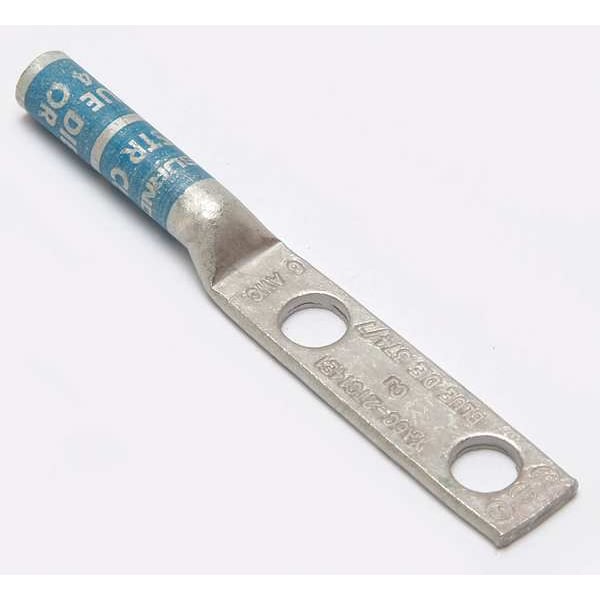

Two-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue
Mfr # YA6C2TC14E1
Zoro # G4692913
product price: $9.19
/eaKey Features
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
YA6C2TC14E1
Zoro #
G4692913
UPC #
781810555842
Country of Origin
United States
Dimensions
For Wire Size
6 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.45 in
Barrel Length
Long
Width
0.45"
Cable Size
6 AWG
Length
3.03"
Overall Width
0.46 in
Overall Length
3.03 in
Length (Straight Wireway)
3.03 in
Tongue Length
0.65 in
For Stranded Copper Wire Size - Minimum
6 AWG
Hole Size
0.27 in
Barrel Outside Diameter
0.29 in
Strip Length
1 3/16 in
Tongue Thickness
0.08 in
For Stranded Copper Wire Size - Maximum
6 AWG
Conductor - Copper Str Navy Size Range
30 (19) Navy
Conductor Size
6 AWG
Conductor - Copper Solid Size
6 AWG
Dimension - Bolt Hole Size inch
0.27
Dimension - Hole Size fraction
2023-01-04
Dimension - B Length inch
1.12
Conductor - Copper Str Size Range
6 AWG
Conductor - Copper Str Size
6 AWG
Dimension - Stud Size inch
1/4 in
Dimension - L Length Overall mm
77
Dimension - Bolt Size inch
0.25
Dimension - Stud Size fraction
2023-01-04
Dimension - Pad Width inch
0.45
Dimension - N inch
0.31
Dimension - Hole Size mm
7
Dimension - Length Overall inch
3.03
Dimension - Outside Diameter inch
0.29
Dimension - Hole Size inch
0.27
Conductor - Copper Str Navy Size
30 (19) Navy
Dimension - Z inch
0.34 in
Dimension - Strip Length inch
1-3/16 in
Dimension - Bolt Size fraction
2023-01-04
Description
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.45 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
