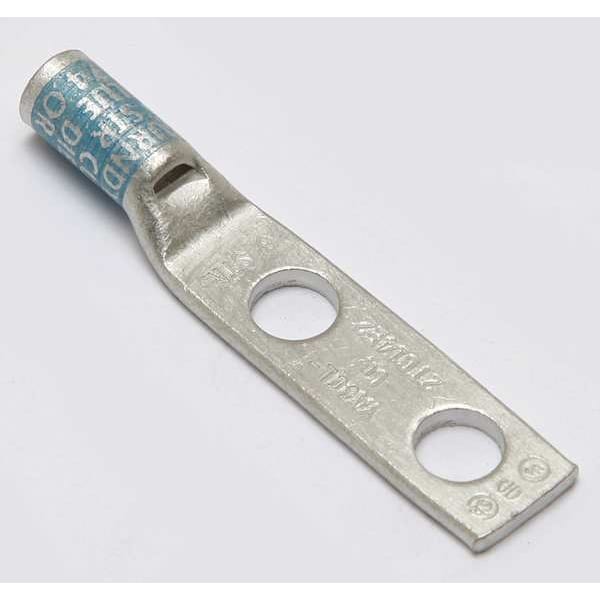

Two-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Blue
Mfr # YA6CL2TC14E2
Zoro # G4656617
product price: $6.85
/eaKey Features
Cable Size
6 AWG
Connector Type
Standard Barrel
Width
0.45"
Material
Copper
Length
2.19"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA6CL2TC14E2
Zoro #
G4656617
UPC #
781810559482
Country of Origin
United States
Dimensions
Cable Size
6 AWG
Width
0.45"
Length
2.19"
Barrel Length
Short
Overall Length
2.19 in
Overall Width
0.45 in
Length (Straight Wireway)
2.19 in
Strip Length
5/8 in
Tongue Length
0.64 in
For Stranded Copper Wire Size - Maximum
6 AWG
Barrel Outside Diameter
0.29 in
Tongue Width
0.45 in
Hole Size
0.27 in
Barrel Size
Standard
For Stud Size
1/4 in
For Wire Size
6 AWG
Tongue Thickness
0.08 in
For Stranded Copper Wire Size - Minimum
6 AWG
Dimension - L Length Overall mm
56 mm
Conductor Size
6 AWG
Dimension - B Length inch
0.54 in
Dimension - Stud Size inch
1/4 in
Dimension - Strip Length inch
5/8 in
Dimension - Hole Size fraction
2023-01-04
Conductor - Copper Str Size Range
6 AWG
Dimension - Z inch
0.33 in
Dimension - Outside Diameter inch
0.29 in
Dimension - B Length fraction
9/16 in
Dimension - Hole Size mm
7 mm
Conductor - Copper Solid Size
6 AWG
Dimension - Length Overall inch
2.19 in
Dimension - Pad Width inch
0.45 in
Dimension - N inch
0.31 in
Dimension - Bolt Hole Size inch
0.27 in
Conductor - Copper Str Size
6 AWG
Dimension - Bolt Size inch
0.25
Dimension - Stud Size fraction
2023-01-04
Dimension - Hole Size inch
0.27 in
Dimension - Bolt Size fraction
2023-01-04
Description
Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.45 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center 0.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
