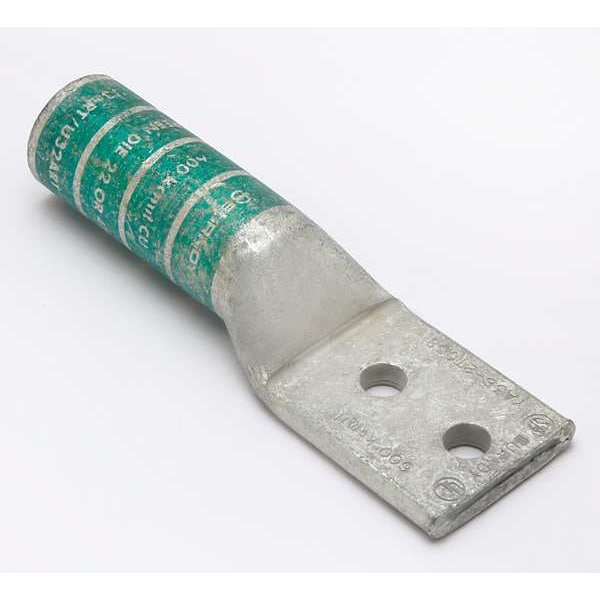

Two-Hole Compression Lug, 600 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Green

  • Mfr # YA362TC38

  • Zoro # G4701602

product price:
$
54.19
/ea

Key Features

For Wire Size
600 kcmil
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YA362TC38
Zoro #
G4701602
UPC #
781810555873
Country of Origin
United States

Dimensions

For Wire Size
600 kcmil
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
1.74 in
Length
5.59"
Barrel Length
Long
Cable Size
600 kcmil
Width
1.74"
Overall Width
1.74 in
Overall Length
5.59 in
Length (Straight Wireway)
5.59 in
For Stranded Copper Wire Size - Maximum
600 kcmil
Barrel Outside Diameter
1.19 in
Tongue Length
1.03 in
Hole Size
0.4 in
Strip Length
2 3/4 in
Tongue Thickness
0.26 in
For Stranded Copper Wire Size - Minimum
600 kcmil
Dimension - Bolt Hole Size inch
0.39 in
Dimension - Stud Size fraction
2023-03-08
Dimension - B Length inch
2.69 in
Dimension - Hole Size inch
0.40 in
Dimension - Pad Width inch
1.74 in
Dimension - Stud Size inch
44993
Conductor Size
600 KCMIL
Dimension - Bolt Size inch
0.38
Conductor - Copper Str Size
600 kcmil
Dimension - Outside Diameter inch
1.19 in
Dimension - N inch
0.50 in
Dimension - Length Overall inch
5.59 in
Dimension - Hole Size mm
10 mm
Conductor - Copper Str Size Range
600 kcmil
Dimension - Hole Size fraction
2023-03-08
Dimension - Z inch
0.53 in
Dimension - B Length fraction
2-11/16 in
Dimension - Bolt Size fraction
44993
Dimension - L Length Overall mm
142 mm
Dimension - Strip Length inch
38020
Wire Rope Length
5.59 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
22, 472
Color Code
Green
Standards
CSA Certified, UL 486A-486B, UL Listed
Tongue Style
Standard
Plate Material
Electro Tin
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Connector Type
Long Barrel
Hole Center to Center
1 in
Peep Hole
No
Hole Center to End
0.5 in
Application
For Code Conductor
Termination Style
Crimp
For Wire Type
Stranded
Contact Finish
Tin
RoHS Compliant
Yes
Maximum Operating Temperature
194 Degrees F
Barrel Style
Chamfered
Special Features
Corrosion Resistant, Non-Insulated Construction
Maximum Voltage
35 kV
Conductor Type
CODE
Rating - KVA
35 kV
Physical Attribute - Tongue Angle
Straight
Feature - Barrel Type
Long
Certification - CSA Approved
Yes
Physical Attribute - Number of Holes
2
Physical Attribute - Tongue Type
Standard
Plated
Y
Feature - Barrel Style
Chamfered
Voltage Rating
35 kV
UL Listed
Yes
Plating Type
Tin - Electro Plated
Voltage - Maximum
35000
Type
Long Barrel, Tin Plated
Finish Type
Tin-Plated
Die Index
22;472
Rating - Minimum Voltage
600
Trade Name
HYLUGâ„¢
Conductor - Material
Copper
Industry Standard(s)
UL468A-468B
Number of Holes
2

Description

Compression Lug, Barrel Size Long, Color Code Green, Die Code 22, 472, Tongue Angle Straight, Tongue Width 1.74 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 600 kcmil, For Stranded Copper Wire Size - Maximum 600 kcmil, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
