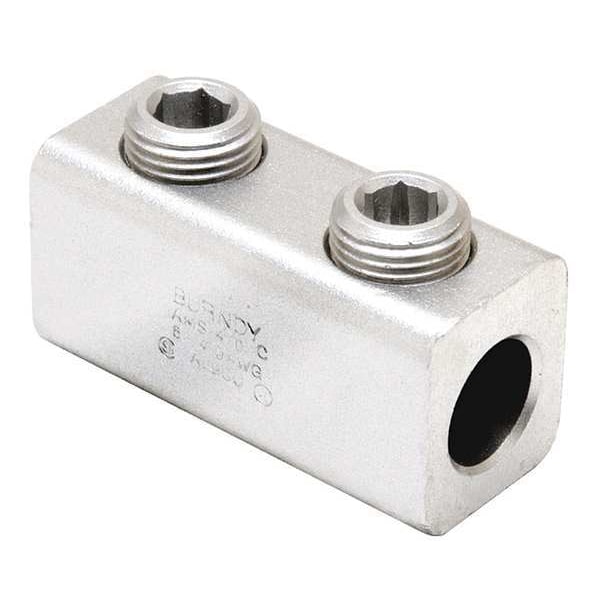

Mechanical Lug, 4/0 AWG Max, 2 Conductor, 9/16 in Stud, Aluminum
Mfr # AMS4/0
Zoro # G4669874
product price:Â $24.89
/eaKey Features
Connector Type
Splice/Reducer
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
6 AWG
For Maximum Wire Size
4/0 AWG
Number of Conductors
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AMS4/0
- Zoro #
- G4669874
- UPC #
- 781810554548
- Country of Origin
- Mexico
Dimensions
- For Minimum Wire Size
- 6 AWG
- For Maximum Wire Size
- 4/0 AWG
- For Stud Size
- 9/16 in
- Length
- 2.31 in
- Width
- 1.09 in
- Max. Conductor Size
- 4/0 AWG Solid and Stranded
- Stud Size
- 5/16 in
- Min. Conductor Size
- 6 AWG Stranded
- Length (Straight Wireway)
- 2.31 in
- Overall Width
- 1.09 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- For Stranded Copper Wire Size - Maximum
- 4/0 AWG
- Overall Depth
- 1 in
- Overall Length
- 2.31 in
- Conductor Size
- 6-4/0 AWG
- Conductor - Copper Str Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Dimension - L Length Overall mm
- 59 mm
- Conductor - AL Str Size Range
- 6 AWG-4/0 AWG
- Conductor - ACSR Cmpt Size
- 250 kcmil-300 kcmil
- Dimension - H1 Height inch
- 1.09 in
- Dimension - Width inch
- 1.00 in
- Dimension - Height fraction
- 11691
- Dimension - Width mm
- 25 mm
- Conductor - Copper Str Size Range
- 6 AWG-4/0 AWG
- Conductor - Copper Str Compact Size
- 250 kcmil-300 kcmil
- Dimension - Width fraction
- 1 in
- Hex Size
- 45062
- Conductor - AL Str Size
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 6 AWG-4/0 AWG
- Depth
- 0.56 in
- Conductor - ACSR Str Size
- 4/0 AWG & 250 kcmil
- Die Size
- EEI 11ABurndy WK840Burndy 249Kearney 840T&B TXT&B 76
- Dimension - Length Overall inch
- 2.31 in
- Wire Rope Length
- 2.31 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 9/16 in, Head Style Slotted, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Width Not Applicable, Tongue Thickness Not Applicable
