Shop All Crimping Tool Dies
Burndy

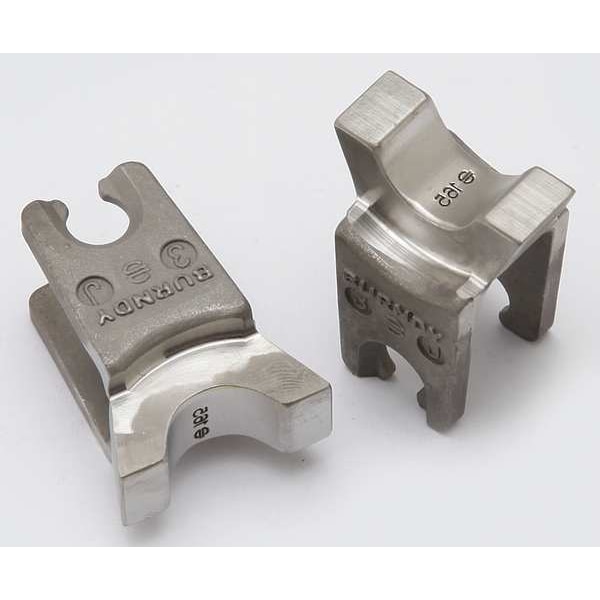

Type W Crimping Die, 1/0 - 4/0 AWG

product price: $107.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Use With Tool Type - Crimper Hand, Power
  • Primary Application - Crimping Electrical Wire and Cable Crimping
  • Crimping Die Series W Style
  • For Use With - Crimping Tool MD6, MD7, Mfr. Series CSMD, OUR840, PAT500SJ, PAT600, PATMD6, Y500CTHS
  • Capacity Aluminum Lug - Crimper 1/0 to 4/0 AWG
See all product information

Product Information

Dimensions

Number of Crimping Sizes 3

Details

Use With Tool Type - Crimper Hand, Power
Primary Application - Crimping Electrical Wire and Cable Crimping
Item Upper and Lower Crimping Die
Crimping Die Series W Style
For Use With - Crimping Tool MD6, MD7, Mfr. Series CSMD, OUR840, PAT500SJ, PAT600, PATMD6, Y500CTHS
Capacity Aluminum Lug - Crimper 1/0 to 4/0 AWG
Capacity Copper Lug - Crimper 1/0 to 4/0 AWG
Max. Crimping Force - Crimper 6 ton
Application Crimping
Cable Range 1/0 - 4/0 AWG
For Use With MD6, MD7, OUR840, Y500CTHS, PAT600, PATMD6 Series
Crimping Capacity 1/0 to 4/0 AWG Aluminum Lug, 1/0 to 4/0 AWG Copper Lug
Compatible Connector Type YCA-2N, YCAB-4N, YCR, YCS, YDS, YDS-C, YDS-W
Maximum Crimping Force 6 ton
Number of Pieces 1
Compatible Cable Type Copper
Compatible with Manufacturer Model Number MD6, MD7, PAT600, PATMD, Y500CTHS
Compatible with Series W Style
Crimping Die Style Upper and Lower W Style
Compatible with Manufacturer Part Number MD6, MD7, PAT600, PATMD, Y500CTHS
Compatible Manufacturer Part Number MD6, MD7, PAT600, PATMD, Y500CTHS
Compatible with Manufacturer Model Number [NEW] MD6, MD7, PAT600, PATMD, Y500CTHS
Compatible Manufacturer Model Number MD6, MD7, PAT600, PATMD, Y500CTHS
For Use with Mfr. Model Number MD6, MD7, PAT600, PATMD, Y500CTHS
For Use With Mfr. Model Number MD6, MD7, PAT600, PATMD, Y500CTHS

Description

This BURNDY W165 Type W Crimping Die is a must-have for your crimping tool. It allows you to efficiently and easily crimp aluminum and copper lugs from 1/0 to 4/0 AWG. This upper and lower die has a capacity of 1/0 to 4/0 AWG, allowing you to crimp the most common cable sizes. Use it with either hand or power tools - just insert the lug into the dies before applying pressure with the crimper. The upper die features a split design that makes inserting lugs easy, while the lower die provides proper alignment of wire ends for smooth entry into terminals. With this BURNDY Type W Crimping Die in your tool box, you will be able to complete jobs quickly and efficiently.
