  11. Uninsulated Compression Terminal, 6 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK
Burndy Uninsulated Compression Terminal, 6 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK YAD6CM10E38 - main

CAD Viewer & Download Files

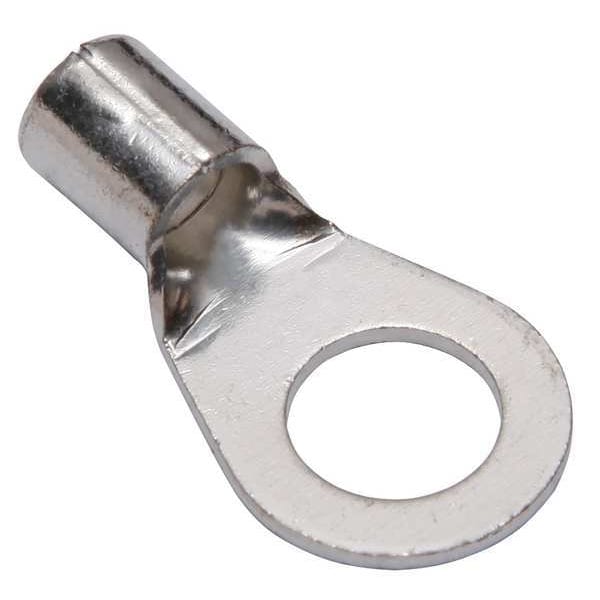

Uninsulated Compression Terminal, 6 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK

  • Mfr # YAD6CM10E38

  • Zoro # G6107771

CAD Available
product price: $20.89
/pk 10, $2.09/ea

Key Features

CAD Drawing
For Wire Size
6 AWG
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Tongue Width
0.71 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD6CM10E38
Zoro #
G6107771
UPC #
781810668665
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
6 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.71 in
Length
1.3"
Tongue Width - Wire Connector
0.71 in
Overall Length
1.3 in
Barrel Length
0.4 in
Cable Size
6 AWG
Width
0.71"
Tongue Thickness
0.05 in
Hole Diameter
0.41 in
Tongue Length
0.9 in
Barrel Outside Diameter
0.32 in
Maximum Wire Size
6 AWG
Minimum Wire Size
6 AWG
Strip Length
1/2 in
Dimension - Pad Width inch
0.71 in
Dimension - Hole Size inch
0.41 in
Dimension - Length Overall inch
1.30 in
Dimension - Outside Diameter inch
0.32 in
Dimension - B Length inch
0.40 in
Dimension - Strip Length inch
45123
Dimension - Stud Size inch
44993
Dimension - L Length Overall mm
33 mm
Dimension - Bolt Size fraction
2023-03-08
Conductor - Copper Str Size
6 AWG
Conductor Size
6 AWG

Details

Item
Uninsulated Compression Terminal
Material
Copper
Color Code
None
Standards
UL 467
Hole Center to End
0.950"
Tongue Style
Ring
Connection Material
Tin Plater Copper
Connector Type
YAD
Insulation Color
Bare
Max. Voltage
600 V
Max. Temp.
302 Degrees F
Peep Hole
No
Plate Material
Tin
Seam
Brazed
Insulation Type
Non-Insulated
Wire Range
6 AWG
Termination Style
Crimp
Seam Style
Brazed
Minimum Operating Temperature
302 Degrees F
Barrel Style
Brazed
Contact Finish
Tin
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Terminal Shape
Ring Tongue
Contact Material
Copper
RoHS Compliant
No
Compatible with Product Type
Code, Flex Cable
Insulation Coverage
None
Insulation Material
None
Maximum Operating Temperature
302 Degrees F
Maximum Voltage
600 V
Compatible Manufacturer Model Number
Y1MRTC
Hole Spacing
0.45 in
Physical Attribute - Tongue Type
Ring
Item Type
3B
Industry Standard(s)
UL467
Feature - Barrel Type
Long
Conductor Type
CU C Str-SizeCU C Flex-Size
Trade Name
HYLUGâ„¢
Voltage - Maximum
600 V
Plating Type
Tin
Plated
Y
Type
Ring Tongue
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
CAD Available
Yes

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.71 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.4 in, Barrel Outside Diameter 0.32 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
