Caldwell

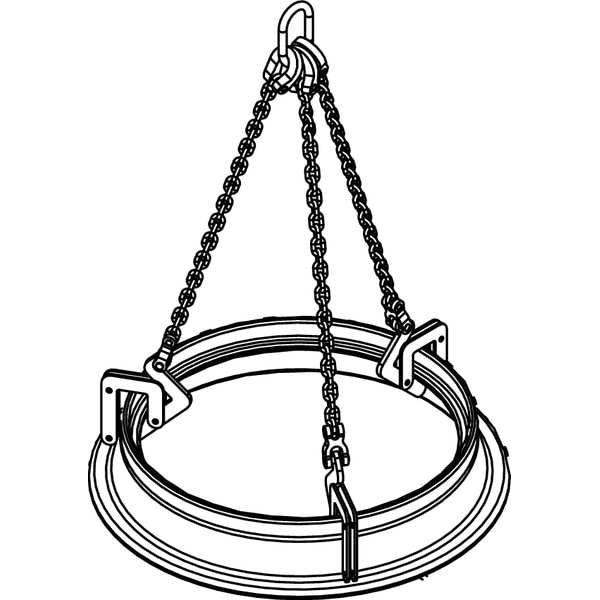

Manhole Sleeve Lifter, Cap1500Lb.

product price: $1,619.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 1,500 lb
  • Manhole Frame Opening Diameter 13 in to 30 in
  • Clamp Range 0 in to 2-7/8 in
  • Headroom 36 5/8 in
  • Material Above the Bail Opening 3/8 in
See all product information

Product Information

Dimensions

Manhole Frame Opening Diameter 13 in to 30 in
Bail Opening Width 2 3/8 in
Bail Opening Height 3 7/8 in
Minimum Manhole Diameter 12 in
Bail Inside Width 2 3/8 in
Bail Inside Length 3 7/8 in
Bail Height 3/8 in
Maximum Manhole Diameter 30 in

Details

Item Manhole Sleeve Lifter
Load Capacity 1,500 lb
Clamp Range 0 in to 2-7/8 in
Headroom 36 5/8 in
Material Above the Bail Opening 3/8 in
Standards ASME
Max. Distance Between Bottom of Manhole Cover Support Flange to Top of Frame 5-1/2 in
Product Type Manhole Sleeve Lifter
Working Load Limit 1,500 lb
Maximum Headroom 26 1/4 in
Bail Thickness 3/8 in
Maximum Load Thickness 2 7/8 in
Number of Legs 3

Description

Manhole Sleeve Lifter, Product Type Manhole Sleeve Lifter, Working Load Limit 1,500 lb, Minimum Manhole Diameter 12 in, Maximum Manhole Diameter 30 in, Maximum Load Thickness 2 7/8 in, Bail Inside Length 3 7/8 in, Bail Inside Width 2 3/8 in, Bail Thickness 3/8 in, Minimum Headroom Not Applicable, Maximum Headroom 26 1/4 in, Number of Legs 3, Bail Height 3/8 in, Standards ASME
