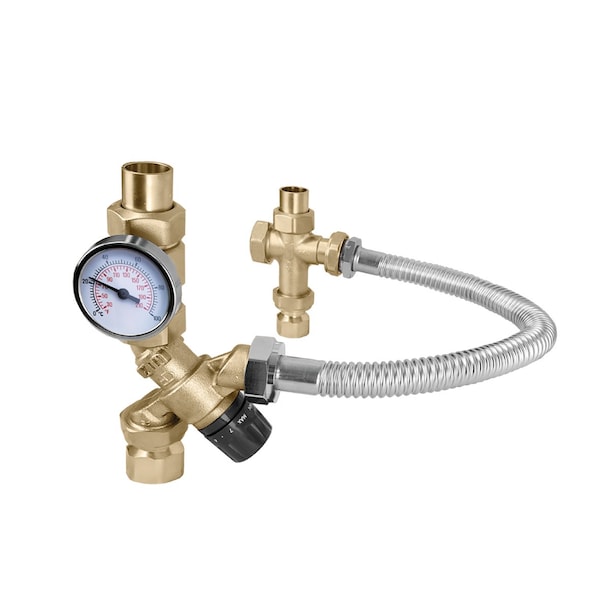

Mixcal 3-Way Mixing Valve 3/4 FNPT tank hose cross 3/4 MNPTw/gage
- Mfr # 520510AX
- Zoro # G423311421
product price:
$
347.99
/ea
Free Shipping & Returns
Key Features
Temp. Range
95 Degrees to 150 Degrees F
Max. Pressure
150 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 520510AX
- Zoro #
- G423311421
- UPC #
- 8016615576214
- Country of Origin
- United States
Details
- Temp. Range
- 95 Degrees to 150 Degrees F
- Max. Pressure
- 150 psi
Description
CALEFFI, 520510AX, TankMixer. Thermostatic mixing valve kit with outlet temperature gauge For use with typical tank type water heaters. Complete with: 520 AngleMix Thermostatic Mixing Valve with outlet temperature gauge Cold Water Supply Cross including: 1/2" FNPT port for recirculation Integral check valve KIT290503A Service Valve Kit including: Pressure relief valve 3/4" GHT ports for service hose connection 3/4" FNPT port for pressure relief valve Posi-Stop union technology connection: 3/4" NPT male, union. Maximum static operating pressure: 150 psi. Adjustment temperature range: 95 - 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 - 9 gpm. Cv: 2.
