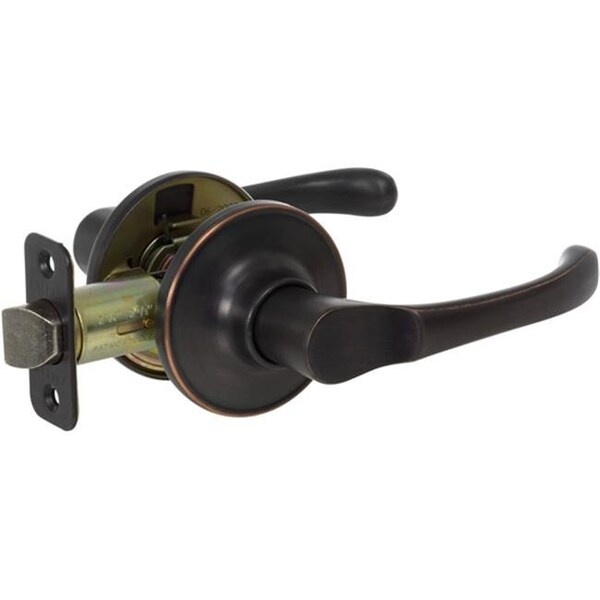

Callan KN5007 Newport Series Grade 3 Keyed Entry Lever Set; Edged Bronze (Discontinued)

Keyed entry knobs and levers are able to be locked from the exterior with a key, and then locked or unlocked from the inside with a turn-button. Primarily used for securing entrances.

• Combination Screws that Suit both Wood or Metal Door Mounting.
• Works Well with Both Traditional and Functional Decor.
• Reversible Handing (Either Left or Right).
• Projection from the door - 2-3/8 in.
• Dimension - 4-1/8 L x 2-3/8 W x 2-5/8 H in.
• Item Weight - 1.75 lbs.

• Door Prep - Cross bore - 2-1/8 in., Edge bore - 1 in., Latch face - 1 x 2-1/4 in.
• Back set - Fits 2-3/8 in. and 2-3/4 in.
• Door Thickness - 1-3/8 in. ~ 1-3/4 in. door standard.
• Cylinder - KW1 5-pin standard; SC1 5-pin optional Entries packed KA5.
• Latches - Entrance - 2-3/8 in. & 2-3/4 in. adjustable (9073), Faceplate - 1 x 2-1/4 in. round corner, Bolt - 1/2 in. throw.
• Strikes - 1-3/4 x 2-1/4 in. full lip round corner (9103).
• Wood Screws - Combination screws that suit both wood or metal door mounting.
• Door Handing - Non-handed lever.
• Finish - Edged Bronze.
