  11. Air Compressor, 1.0 HP, 120VAC, Tank 6 gal.
This item is Discontinued.

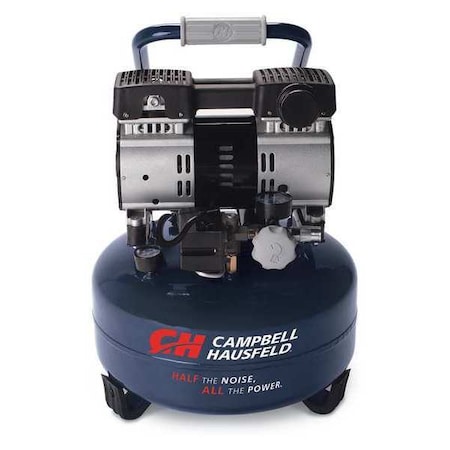

Campbell Hausfeld Air Compressor, 1.0 HP, 120VAC, Tank 6 gal. DC060500

Air Compressor, 1.0 HP, 120VAC, Tank 6 gal. (Discontinued)

  • Mfr # DC060500
  • Zoro # G9529339
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DC060500
Zoro #
G9529339
UPC #
045564641931
Country of Origin
China

Dimensions

Tank Size
6 gal.
Overall Length
17 in
Overall Height
23.6 in
Overall Width
16.5 in
Tank Size - Air Compressor
6.0 gal
Air Tank Size
6 gal
Outlet Size
1/4 in

Details

Voltage
110/120V
Max. Pressure
125 psi
Phase
Single Phase
HP
1
Tank Type
Pancake
Free Air CFM @ Max. Pressure
2.4 @ 90 psi
Includes
1/4 in Outlet Coupler, 1/4 in Turn Ball Valve Drain, On/Off Pressure Switch, Outlet Regulator and Gauge, Pressure Relief Valve, Tank Pressure Gauge
Compressor Type
Quiet Air Compressor
Weight
62 lb
Standards
ETL
Weight - Air Compressor
62 lb
Free Air CFM @ 90 PSI - Air Compressor
2.4
Motor RPM
1,750 RPM
Item - Air Compressor
Portable Air Compressor
Motor Type
Induction
dBA @ 3 Feet
68.0
Lubrication Type
Oil Free
Tank Style - Air Compressor
Pancake
HP - Air Compressor
1.0 hp
Item
Portable Air Compressor
(F)NPT Outlet
1/4 in
Free Air CFM @ Max. Pressure - Air Compressor
2.0
Max. Pressure - Air Compressor
125 psi
Cylinder Material
Aluminum
Avg. Pump Life
2,000 hr
Input Voltage - Air Compressor
120V AC
Free Air CFM @ 90 PSI
2.4
Full Load Amps
7.0
Lubrication Type - Air compressor
Oil Free
Input Voltage
120V AC
Number of Cylinders
2
Maximum Speed
1,750 RPM
Electrical Connection
Cord with Plugs
Outlet Type
NPT
Current Rating
7.5 A
Air Tank Style
Pancake
Free Air Flow Rate
2.4 cfm
Sound Level
68 dBA
Duty Cycle
Intermittent
Output Power
1 hp
Number of Stages
1
Outlet Gender
Female
Pump Type
Piston
Average Pump Life
2,000 hr
Maximum Operating Pressure
125 psi

Description

Portable Air Compressor, Lubrication Type Oil Free, Air Tank Style Pancake, Output Power 1 hp, Free Air Flow Rate 2.4 cfm, Maximum Operating Pressure 125 psi, Air Tank Size 6 gal, Input Voltage 120V AC, Current Rating 7.5 A, Sound Level 68 dBA, Weight 62 lb, Pump Type Piston, Number of Stages 1, Motor Type Induction
