Shop CANARM

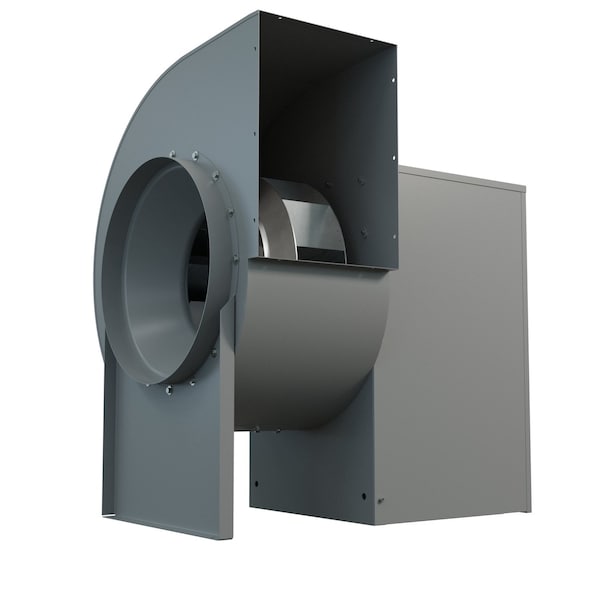

Blower, Belt Drive, Steel, 30 7/8" H

  • Mfr # BI1330500M

  • Zoro # G813332739

product price:  $2,347.99
/ea
Additional $195.00 delivery surcharge applies per item.
See details

Key Features

Minimum Motor Horsepower
5 hp
Outlet Width
10 3/4 in
Maximum Motor Speed
2,889 RPM
Wheel Material
Aluminum
Number of Discharge Positions
8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BI1330500M
Zoro #
G813332739
UPC #
-
Country of Origin
Canada

Dimensions

Outlet Width
10 3/4 in
Housing Height
30 7/8 in
Wheel Diameter
13 in
Overall Depth
22 7/16 in
Inlet Diameter
14 3/8 in
Manufacturer Warranty Length
1 yr
Overall Width
32 in
Housing Width
32 in
Shaft Diameter
1 in
Overall Height
30 15/16 in
Outlet Height
14 3/8 in
Housing Depth
22 3/8 in
Wheel Width
13 1/2 in

Details

Item
Blower
Minimum Motor Horsepower
5 hp
Maximum Motor Speed
2,889 RPM
Wheel Material
Aluminum
Number of Discharge Positions
8
Includes Drive Package
Yes
Outlet Shape
Rectangular
For Location
Outdoor
Bearing Type
Pillow Block Ball
Standards
AMCA Air Performance Certified, cETus
AMCA Fan Class
I
Corrosion Resistant
Yes
Mount Type
Roof
Drive Type
Belt Drive
Discharge Position
Top Horizontal
Spark Resistant Construction Type
Not Rated
Maximum Airflow
3,900 cfm
Housing Material
Steel
Wheel Type
Backward-Inclined
Minimum Airflow
2,400 cfm
Mounting Orientation
Horizontal
For Ventilation Type
Exhaust
Rotation
CCW
Application
Ventilation
Resistance Properties
Corrosion Resistant
Maximum Motor Horsepower
5 hp
Housing Material Gauge
16 ga
Number of Inlets
1
Features
Motor Access from 3 Sides, Sloped Motor Base for Ease of Motor Installation
Speed Controllable
Variable Speed
Chemical Resistant
No
Flange Type
Non-Flanged
Maximum Inlet Air Temperature
250 Degrees F
Assembly
Assembled
For High-Static Pressure Applications
Yes
Maximum Static Pressure
1 1/2 in wc
Sound Level
Not Rated
Maximum Fan Speed
2,889 RPM
Hazardous Location Application
No
Airflow @ 0.000 in SP
3,900 cfm
Motor Horsepower
5 hp
Phase
3
OEM Replacement
No
Airflow @ 1.500 in SP
3,748 cfm
Airflow @ 0.750 in SP
3,952 cfm
Airflow @ 0.125 in SP
4,125 cfm
Airflow @ 0.250 in SP
4,087 cfm
Motor Enclosure
Open Dripproof
Nameplate Voltage
230/460V AC
Airflow @ 0.375 in SP
4,053 cfm
Airflow @ 0.500 in SP
4,053 cfm
Product Type
Motor
Minimum Fan Speed
2,889 RPM
Airflow @ 1.250 in SP
3,821 cfm
Airflow @ 1.000 in SP
3,885 cfm
Number of Speeds
1

Description

Belt driven utility blower
