Shop CANARM

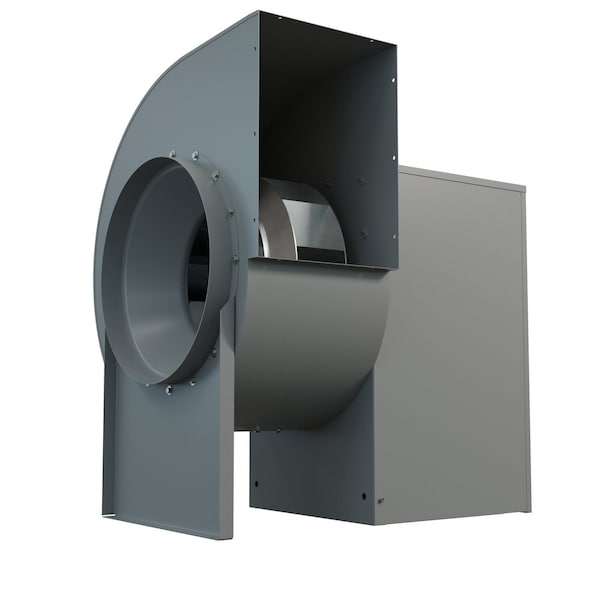

Blower, Belt Drive, Steel, 31 7/8" H

  • Mfr # BI1510500

  • Zoro # G413332740

product price:  $3,215.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

Mount Type
Roof
Maximum Motor Speed
2,554 RPM
Housing Width
33 15/16 in
Overall Depth
24 7/8 in
For Ventilation Type
Exhaust
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BI1510500
Zoro #
G413332740
UPC #
-
Country of Origin
Canada

Dimensions

Housing Width
33 15/16 in
Overall Depth
24 7/8 in
Inlet Diameter
15 7/8 in
Outlet Width
12 3/4 in
Manufacturer Warranty Length
1 yr
Wheel Diameter
15 in
Outlet Height
15 13/16 in
Overall Width
33 15/16 in
Housing Depth
24 13/16 in
Housing Height
31 7/8 in
Shaft Diameter
1 in
Overall Height
31 15/16 in
Wheel Width
15 in

Details

Item
Blower
Mount Type
Roof
Maximum Motor Speed
2,554 RPM
For Ventilation Type
Exhaust
Spark Resistant Construction Type
Not Rated
Application
Ventilation
Maximum Airflow
4,800 cfm
Number of Discharge Positions
8
Features
Motor Access from 3 Sides, Sloped Motor Base for Ease of Motor Installation
AMCA Fan Class
I
Minimum Airflow
3,000 cfm
Standards
AMCA Air Performance Certified, cETus
For Location
Outdoor
Wheel Material
Aluminum
Discharge Position
Top Horizontal
Includes Drive Package
Yes
Bearing Type
Pillow Block Ball
Number of Inlets
1
Drive Type
Belt Drive
Housing Material Gauge
16 ga
Outlet Shape
Rectangular
Wheel Type
Backward-Inclined
Corrosion Resistant
Yes
Maximum Motor Horsepower
5 hp
Rotation
CCW
Housing Material
Steel
Resistance Properties
Corrosion Resistant
Mounting Orientation
Horizontal
Maximum Fan Speed
2,554 RPM
Maximum Static Pressure
1 1/2 in wc
Minimum Motor Horsepower
5 hp
Speed Controllable
No
Assembly
Assembled
For High-Static Pressure Applications
Yes
Hazardous Location Application
No
Sound Level
Not Rated
Flange Type
Non-Flanged
Maximum Inlet Air Temperature
250 Degrees F
Chemical Resistant
No
Airflow @ 0.000 in SP
4,800 cfm
Motor Horsepower
5 hp
Airflow @ 1.500 in SP
4,529 cfm
Airflow @ 1.000 in SP
4,700 cfm
Motor Enclosure
Open Dripproof
Nameplate Voltage
230V AC
Airflow @ 0.250 in SP
4,959 cfm
Airflow @ 0.125 in SP
5,000 cfm
Minimum Fan Speed
2,554 RPM
Number of Speeds
1
Airflow @ 0.750 in SP
4,793 cfm
OEM Replacement
No
Product Type
Motor
Phase
1
Airflow @ 0.500 in SP
4,915 cfm
Airflow @ 1.250 in SP
4,617 cfm
Airflow @ 0.375 in SP
4,915 cfm

Description

Belt driven utility blower
