Canarm

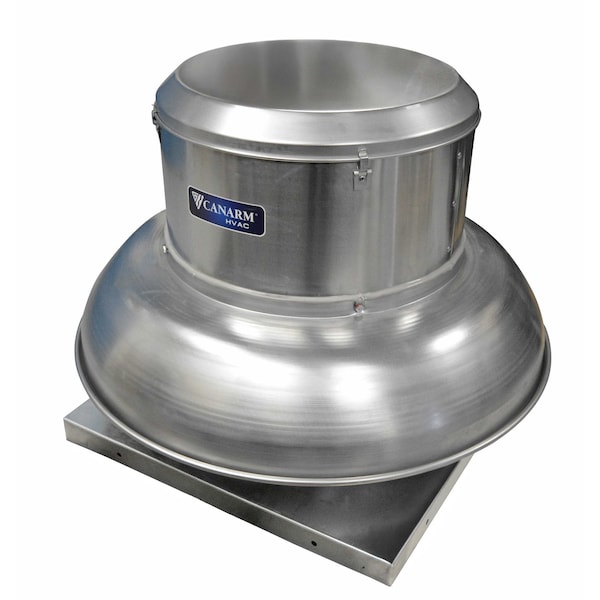

Downblast Exhauster

product price: $1,076.99
/ea
Item requires special delivery charges. A $190.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Motor Enclosure Open Dripproof
  • Application Commercial Buildings, Factories, Offices, Warehouses
  • Speed Controllable Variable Speed
  • Motor Type Electronically Commutated
  • Phase 1
See all product information

Product Information

Dimensions

Base Width 28 in
Overall Length 36 1/4 in
Base Length 28 in
Overall Height 31 3/4 in
Wheel Diameter 18 1/4 in
Overall Diameter 28 in
Overall Width 36 1/4 in

Details

Item Downblast Exhauster
Motor Enclosure Open Dripproof
Application Commercial Buildings, Factories, Offices, Warehouses
Speed Controllable Variable Speed
Motor Type Electronically Commutated
Phase 1
Housing Material Aluminum
Number of Speeds Variable
Airflow @ 0.000 in SP 3,800 cfm
High-Efficiency Motor Yes
Frequency 50 Hz, 60 Hz
Exhaust Airflow @ 0.500 in SP 3,325 cfm
Electrical Connection Wire Leads
Wheel Material Aluminum
For Air Type Clean Air
Housing Material Fabrication Spun
Includes Motor Yes
Exhaust Airflow @ 0.250 in SP 3,625 cfm
Motor Horsepower 1 hp
Features Quick Release Latches for Easy Motor Access
Includes Drive Package Yes
Standards cETLus
Drive Type Direct Drive
For High-Static Pressure Applications Yes
Power Source Electric Corded
Motor Speed 1,200 RPM
Wheel Type Backward Inclined
Maximum Static Pressure 1 1/4 in wc
Exhaust Airflow @ 0.000 in SP 3,800 cfm
Series ALX
Base Shape Square
Nameplate Voltage 115/208-230V AC
Assembly Assembled

Description

Downblast Exhauster, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 18 1/4 in, Base Diameter Not Applicable, Base Length 28 in, Base Width 28 in, Base Shape Square, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1 hp, Exhaust Airflow @ 0.000 in SP 3,800 cfm, For High-Static Pressure Applications Yes, High-Efficiency Motor Yes, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof and Wall, Maximum Static Pressure 1 1/4 in wc
