Canarm Exhaust Fan, Assembled, 850 RPM SD48-H1D - main

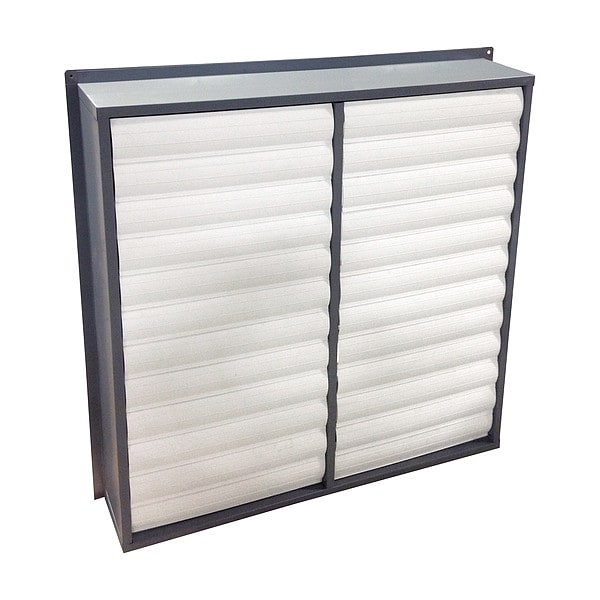

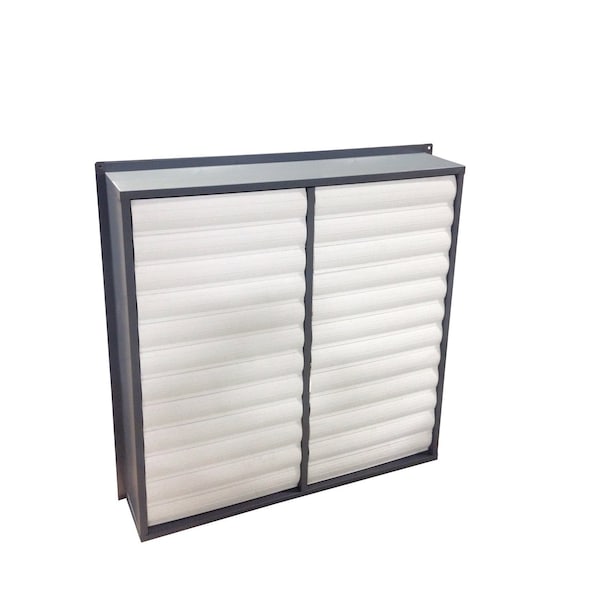

Exhaust Fan, Assembled, 850 RPM

  • Mfr # SD48-H1D

  • Zoro # G214739199

product price: $1,325.44
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Motor Enclosure
Totally Enclosed Air Over
Thermal Protection
Yes
Frame Material
Steel
Maximum Noise Level
84 dBA
For Cut-Out Width
51 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SD48-H1D
Zoro #
G214739199
UPC #
-
Country of Origin
Canada

Dimensions

For Cut-Out Width
51 in
For Minimum Wall Thickness
6 in
Overall Diameter
48 in
Overall Width
53 1/4 in
Overall Height
53 1/4 in
Blade Diameter
48 in
For Maximum Wall Thickness
6 in
For Cut-Out Height
51 in
Overall Depth
18 in
Manufacturer Warranty Length
1 yr

Details

Item
Exhaust Fan
Motor Enclosure
Totally Enclosed Air Over
Thermal Protection
Yes
Frame Material
Steel
Maximum Noise Level
84 dBA
Includes Motor
Yes
Standards
cETLus
Housing Finish
Unfinished
Supply Airflow @ 0.000 in SP
12,610 cfm
Nameplate Voltage
230V AC
Frame Finish
Powder Coated
Maximum Ambient Operating Temperature
104 Degrees F
Ring-Mount Style
Flange
Number of Speeds
1
Number of Blades
3
Exhaust Airflow @ 0.000 in SP
14,470 cfm
Includes Dehumidistat
No
Fan Style
Box
Housing Material
Steel
Control Type
Toggle Switch
Guard Finish
Chrome Plated
Maximum Airflow
14,470 cfm
Motor Speed
850 RPM
Number of Fans
1
Guard Type
Exhaust
Ventilation Type
Exhaust
Drive Type
Direct Drive
Motor Horsepower
1 hp
Guard Material
Steel
Phase
1
Grille Color
Gray
Maximum Static Pressure
0.25 in wg
Full Load Current
5 A
Noise Level @ 0.000 in SP @ 5 ft
49 sones
Assembled
Assembled
Blade Material
Galvanized Steel

Description

SINGLE SPEED STANDARD FAN
