  9. ExtFn, 14In Bld, Galvalume, 230/460V

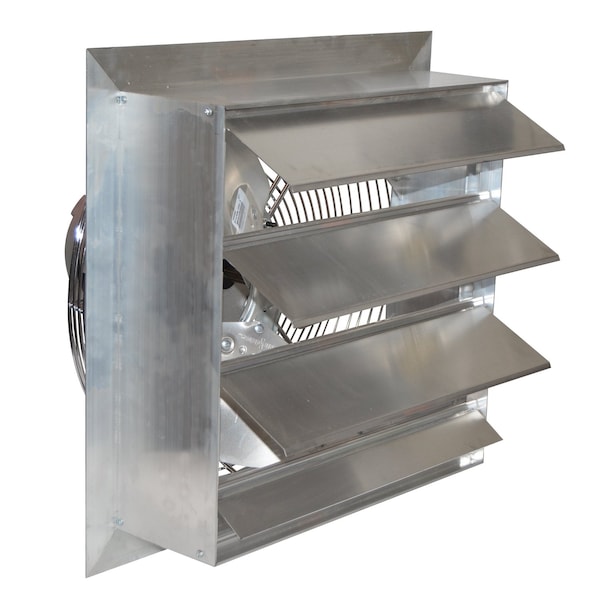

Canarm ExtFn, 14In Bld, Galvalume, 230/460V AX14-1M - main

ExtFn, 14In Bld, Galvalume, 230/460V

  • Mfr # AX14-1M

  • Zoro # G403541138

product price: $419.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
14 in
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
2170 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AX14-1M
Zoro #
G403541138
UPC #
062345205618
Country of Origin
Canada

Dimensions

Blade Dia.
14 in
Width
18 3/4 in
Height
18 3/4 in
Max. Depth
16 in
Blade Diameter
14 in
Overall Width
18 3/4 in
Overall Height
18 3/4 in
Overall Depth
16 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
2170 cfm
Exhaust/Supply Fan Motor HP
1/3 hp
Square Opening Required
15 3/4 in
Item
Exhaust Fan
Number of Blades
3
Guard Material
Chrome Plated Wire
Frame Material
Aluminum
CFM @ 0.250-In. SP
1900 cfm
Sones @ 0.000-In. SP @ 5 Ft.
14.0 sones
Motor RPM
1700 RPM
Wire Guard Finish
Chrome
CFM @ 0.125-In. SP
1950 cfm
Thermal Protection
No
Full Load Amps
5.0/2.5
Max. Ambient Temp.
40 Degrees C
Motor Insulation
Class B
Bearing Type
Ball
Hz
50 Hz
Standards
OSHA
Blade Material
Steel
Phase
3
Motor Enclosure
Totally Enclosed Air Over
Frame Finish
Aluminum
Motor Type
PSC
Includes
Intake Guard, Shutter
Motor Speed
1,700 RPM
Ventilation Type
Exhaust
Full Load Current
5 A
Maximum Ambient Operating Temperature
104 Degrees F
Maximum Noise Level
14 sones
Exhaust Airflow @ 0.250 in SP
1,900 cfm
Motor Horsepower
1/3 hp
Exhaust Airflow @ 0.125 in SP
1,950 cfm
Assembled
Assembled
Exhaust Airflow @ 0.000 in SP
2,170 cfm
Nameplate Voltage
230/460V AC
Frequency
50 Hz
Noise Level @ 0.000 in SP @ 5 ft
14 sones

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 14 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 2,170 cfm, Frame Finish Aluminum, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Intake Guard, Shutter, Maximum Noise Level 14 sones
