Shop DAYTON

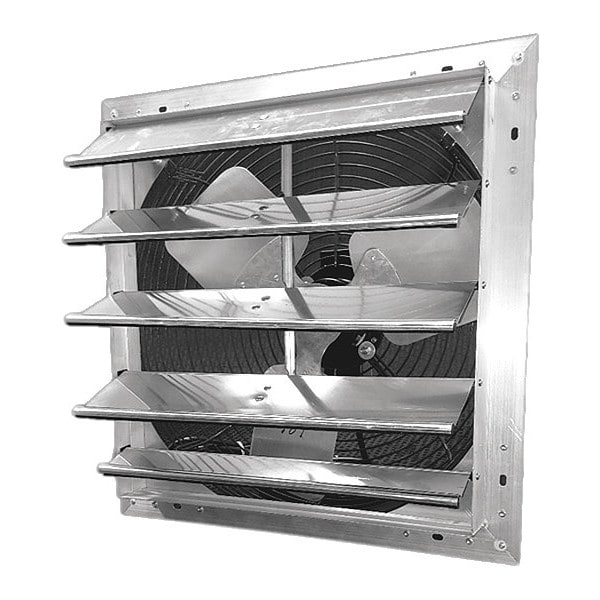

Shutter Mount Exhaust Fan, 20 in Blade Dia, 1/4 hp, 1 Phase, Variable Speed, 3151 cfm, 115V AC

  • Mfr # 484X43

  • Zoro # G2144477

product price:
$
311.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
20 in
Number of Speeds
Variable
Fan Voltage
115V AC
CFM @ 0.000-In. SP
3151
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
484X43
Zoro #
G2144477
UPC #
818015025099
Country of Origin
China
Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
Variable
Fan Voltage
115V AC
CFM @ 0.000-In. SP
3151
Exhaust/Supply Fan Motor HP
1/4 hp
Square Opening Required
20-1/2 to 30 in
Item
Shutter Mount Exhaust Fan
Includes
Intake Guard
Phase
1
Guard Material
Steel
Standards
C-UL Listed, OSHA Compliant Guards, UL
Motor RPM
1075
Speed Control Item Number
48C172
Motor Insulation
Class B
Number of Blades
3
Frame Material
Aluminum
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air Over
Hz
60
Voltage
115
Motor Type
3-Phase
Thermal Protection
Yes
Sones @ 0.000-In. SP @ 5 Ft.
11.3
Blade Material
Aluminum
CFM @ 0.125-In. SP
2335
Full Load Amps
2.75 A
Frame Finish
Aluminum
Wire Guard Finish
Powder Coated
CFM @ 0.250-In. SP
1099
Bearing Type
Ball
Guard Type
Intake
Ventilation Type
Exhaust
Exhaust Airflow @ 0.250 in SP
1,099 cfm
Speed Controllable
Yes
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.100 in SP
2,480 cfm
Exhaust Airflow @ 0.125 in SP
2,335 cfm
Noise Level @ 0.100 in SP @ 5 ft
11.18 sones
Motor Speed
1,075 RPM
Number of Fans
1
Includes Dehumidistat
No
Drive Type
Direct Drive
Housing Material
Aluminum, Steel
Noise Level @ 0.000 in SP @ 5 ft
11.3 sones
Exhaust Airflow @ 0.000 in SP
3,151 cfm
Maximum Coverage Area
900 sq ft
Wattage
256 W
Guard Finish
Powder Coated
Electrical Connection
Hardwired
Maximum Airflow
3,151 cfm
Assembled
Assembled
Motor Horsepower
1/4 hp
Full Load Current
2.75 A
Fan Style
Shutter-Mounted
Mounting Orientation
Vertical
Maximum Noise Level
11.3 sones
Nameplate Voltage
115V AC
Frequency
60 Hz
Housing Finish
Powder-Coated
Number of Shutters
1
Includes Motor
Yes

Description

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 3,151 cfm, For Cut-Out Height 21 in, For Cut-Out Width 21 in, For Maximum Wall Thickness 6 in, For Minimum Wall Thickness 3 in, Frame Material Aluminum, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Aluminum, Steel, Housing Finish Powder-Coated, Includes Intake Guard
