  9. ExtFn, 18In Bld Dia, GalvalM, 230/460V

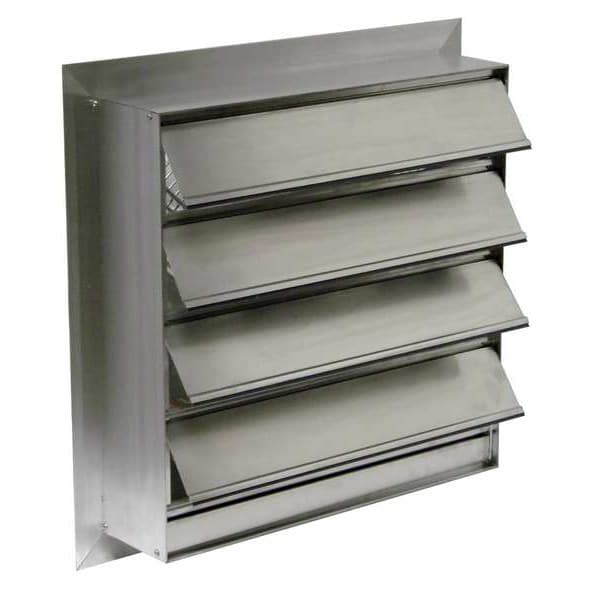

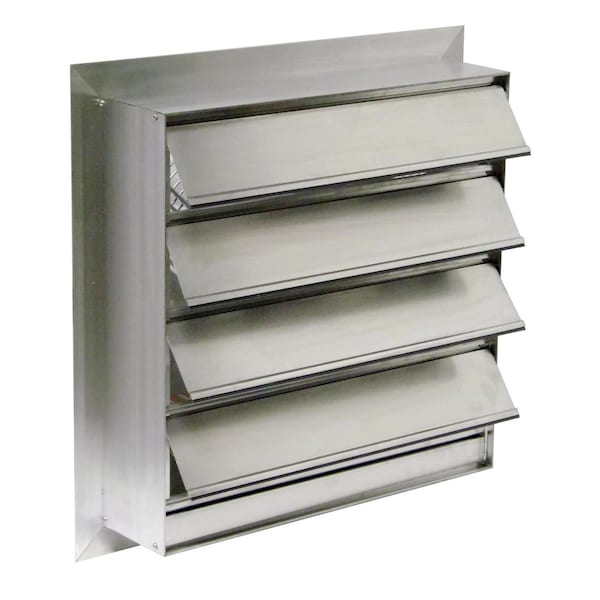

Canarm ExtFn, 18In Bld Dia, GalvalM, 230/460V AX18-1M - main

ExtFn, 18In Bld Dia, GalvalM, 230/460V

  • Mfr # AX18-1M

  • Zoro # G703541203

product price: $560.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
18 in
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
3150 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AX18-1M
Zoro #
G703541203
UPC #
062345205960
Country of Origin
Canada

Dimensions

Blade Dia.
18 in
Width
22 3/4 in
Height
22 3/4 in
Max. Depth
17 in
Overall Height
22 3/4 in
Blade Diameter
18 in
Overall Depth
17 in
Overall Width
22 3/4 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
230/460V AC
CFM @ 0.000-In. SP
3150 cfm
Exhaust/Supply Fan Motor HP
1/3 hp
Square Opening Required
19 3/4 in
Item
Exhaust Fan
Bearing Type
Ball
CFM @ 0.125-In. SP
2900 cfm
Blade Material
Steel
Frame Finish
Aluminum
Wire Guard Finish
Chrome
Hz
50 Hz
Max. Ambient Temp.
40 Degrees C
Thermal Protection
No
Motor Type
PSC
Frame Material
Aluminum
Sones @ 0.000-In. SP @ 5 Ft.
19.0 sones
Standards
OSHA
Number of Blades
3
Motor Insulation
Class B
Motor RPM
1700 RPM
CFM @ 0.250-In. SP
2575 cfm
Guard Material
Chrome Plated Wire
Includes
Intake Guard, Shutter
Motor Enclosure
Totally Enclosed Air Over
Phase
3
Maximum Noise Level
19 sones
Maximum Ambient Operating Temperature
104 Degrees F
Assembled
Assembled
Exhaust Airflow @ 0.250 in SP
2,575 cfm
Nameplate Voltage
230/460V AC
Exhaust Airflow @ 0.125 in SP
2,900 cfm
Ventilation Type
Exhaust
Motor Speed
1,700 RPM
Motor Horsepower
1/3 hp
Frequency
50 Hz
Noise Level @ 0.000 in SP @ 5 ft
19 sones
Exhaust Airflow @ 0.000 in SP
3,150 cfm

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 18 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 3,150 cfm, Frame Finish Aluminum, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Intake Guard, Shutter, Maximum Noise Level 19 sones
