  9. ExtFn, 36In Bld Dia, Galvalm, 208-230/460V

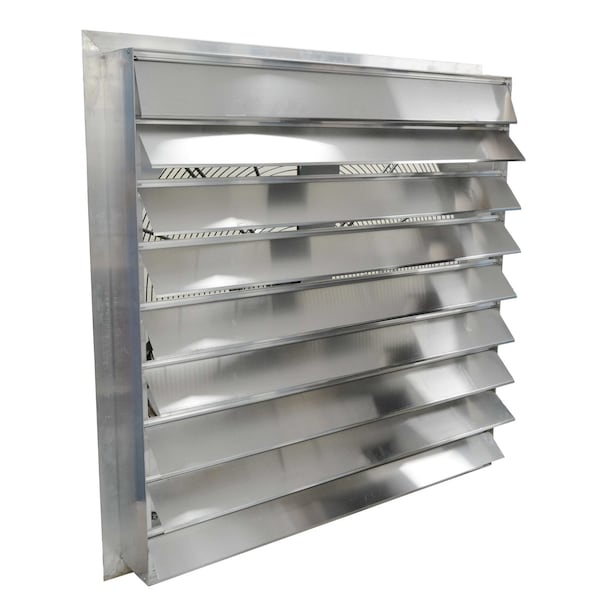

Canarm ExtFn, 36In Bld Dia, Galvalm, 208-230/460V AX36-7M - main

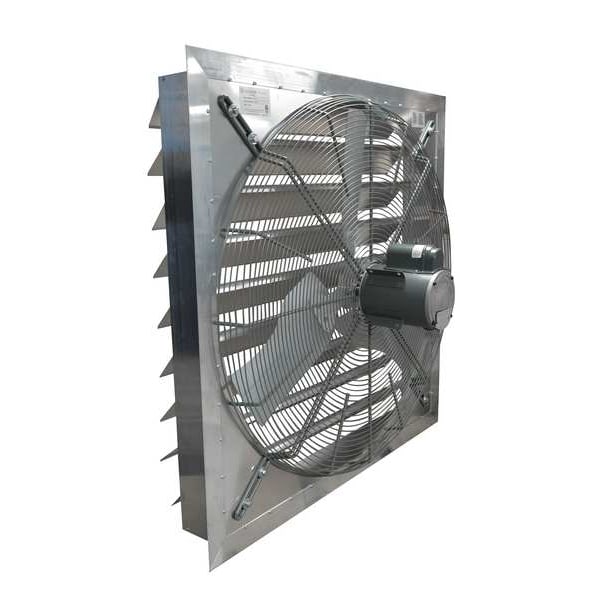

ExtFn, 36In Bld Dia, Galvalm, 208-230/460V

  • Mfr # AX36-7M

  • Zoro # G003538910

product price: $971.99
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
36 in
Number of Speeds
1
Fan Voltage
208-230/460V AC
CFM @ 0.000-In. SP
10000 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AX36-7M
Zoro #
G003538910
UPC #
062345286051
Country of Origin
Canada

Dimensions

Blade Dia.
36 in
Width
41 1/4 in
Height
41 1/4 in
Max. Depth
17 in
Overall Height
41 1/4 in
Overall Depth
17 in
Overall Width
41 1/4 in
Blade Diameter
36 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
208-230/460V AC
CFM @ 0.000-In. SP
10000 cfm
Exhaust/Supply Fan Motor HP
1/2 hp
Square Opening Required
38 3/4 in
Item
Exhaust Fan
Motor Enclosure
Totally Enclosed Air Over
CFM @ 0.125-In. SP
8000 cfm
Motor Insulation
Class B
Frame Finish
Aluminum
Includes
Intake Guard, Shutter
Bearing Type
Ball
Guard Material
Chrome Plated Wire
Thermal Protection
No
Motor RPM
850 RPM
Frame Material
Aluminum
CFM @ 0.250-In. SP
6200 cfm
Full Load Amps
6.6/3.3
Motor Type
PSC
Sones @ 0.000-In. SP @ 5 Ft.
21.0 sones
Max. Ambient Temp.
40 Degrees C
Number of Blades
3
Blade Material
Steel
Hz
50 Hz
Wire Guard Finish
Gray Powder Coated
Phase
3
Ventilation Type
Exhaust
Assembled
Assembled
Nameplate Voltage
208-230/460V AC
Exhaust Airflow @ 0.000 in SP
10,000 cfm
Exhaust Airflow @ 0.125 in SP
8,000 cfm
Full Load Current
6.6 A
Noise Level @ 0.000 in SP @ 5 ft
21 sones
Frequency
50 Hz
Motor Horsepower
1/2 hp
Exhaust Airflow @ 0.250 in SP
6,200 cfm
Maximum Ambient Operating Temperature
104 Degrees F
Motor Speed
850 RPM
Maximum Noise Level
21 sones

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 36 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 10,000 cfm, Frame Finish Aluminum, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Intake Guard, Shutter, Maximum Noise Level 21 sones
