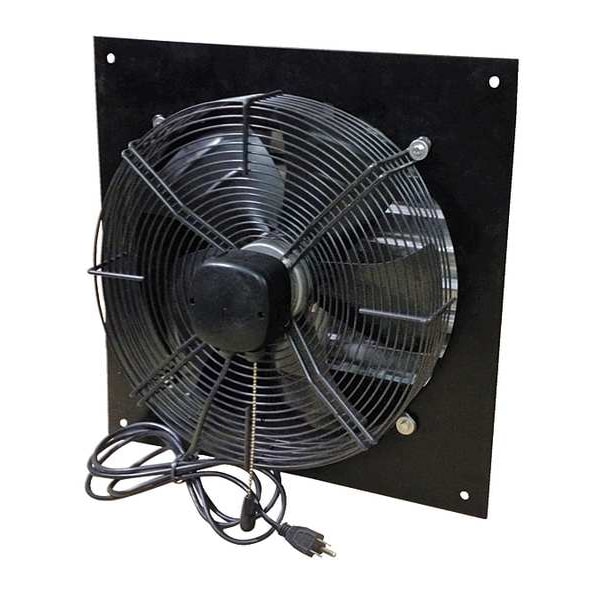

Shutter Mount Exhaust Fan, 12", 3 Speed, 1100/900/800 cfm

Mfr # XFS12
Zoro # G8509067

$184.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Blade Dia. 12 in
Number of Speeds 3
Fan Voltage 115V AC
CFM @ 0.000-In. SP 1100/900/800
Exhaust/Supply Fan Motor HP 1/12 hp

See all product information

Brand Canarm
MFR # XFS12
Zoro # G8509067
UPC #
062345353821
Country of Origin China
Category Shutter Mount Exhaust Fans

Dimensions

Blade Dia.	12 in
Width	16 7/8 in
Height	16 7/8 in
Max. Depth	8 3/8 in
Overall Height	16 7/8 in
For Cut-Out Height	14 in
For Cut-Out Width	14 in
Manufacturer Warranty Length	1 yr
Overall Width	16 7/8 in
Blade Diameter	12 in
For Cut-Out Length	14 in
Overall Depth	8 3/8 in
Overall Diameter	16 7/8 in
Power Cord Length	9 ft

Details

Exhaust/Supply Fan Item	Exhaust Fan
Number of Speeds	3
Fan Voltage	115V AC
CFM @ 0.000-In. SP	1100/900/800
Exhaust/Supply Fan Motor HP	1/12 hp
Square Opening Required	10-1/2 to 20 in
Standards	ETL, OSHA Compliant
Thermal Protection	Yes
Frame Material	Steel
Frame Finish	Powder Coated
Max. Ambient Temp.	40 Degrees C
Item	Shutter Mount Exhaust Fan
Number of Blades	5
Guard Material	Steel
Speed Control Item Number	CN5041
Full Load Amps	0.8/0.8/0.7
Hz	60
Wire Guard Finish	Powder Coated
Motor Insulation	Class A
Motor Enclosure	Totally Enclosed Air Over
Motor Type	Single Phase
Voltage	115V
Phase	1
Drive Package Included	No
Includes	Power Cord with 115V 3 Prong Plug, Shutter, Wire Guard
Blade Material	Steel
Bearing Type	Permanently Lubricated Sealed Ball
Nameplate Voltage	115V AC
Noise Level @ 0.100 in SP @ 5 ft	8 sones
Supply Airflow @ 0.000 in SP	1,100 cfm
Vent Design	Ductless
Ventilation Type	Exhaust
Exhaust Airflow @ 0.100 in SP	1,100 cfm
For Maximum Wall Thickness	5 in
Exhaust Airflow @ 0.125 in SP	1,100 cfm
Noise Level @ 0.000 in SP @ 5 ft	8 sones
Guard Type	Intake
Includes Motor	Yes
Housing Material	Steel
Wattage	92 W
Guard Finish	Powder Coated
For Minimum Wall Thickness	5 in
Frequency	60 Hz
Number of Fans	1
Maximum Noise Level	8 sones
Full Load Current	0.8 A
Exhaust Airflow @ 0.000 in SP	1,100 cfm
Fan Style	Shutter-Mounted
Speed Controllable	Yes
Maximum Airflow	1,100 cfm
Control Type	Pull Chain
Includes Grill	No
Assembled	Assembled
Drive Type	Direct Drive
Motor Horsepower	1/12 hp
Maximum Ambient Operating Temperature	194 Degrees F
Includes Dehumidistat	No
Electrical Connection	Plug-In
Housing Finish	Powder-Coated
Motor Speed	1,600 RPM
Method of Construction	Stamped

Description

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 12 in, Blade Material Steel, Control Type Pull Chain, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,100 cfm, For Cut-Out Height 14 in, For Cut-Out Width 14 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Steel
