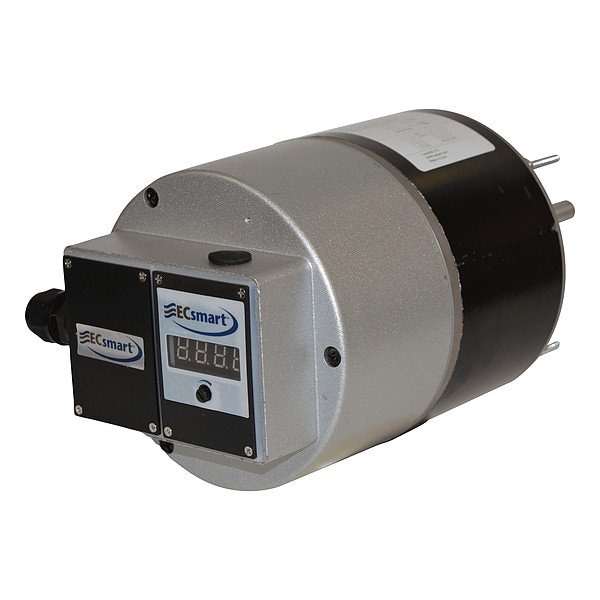

OEM Replacement Motor, 1/2, OEM Replacement Brand: Canarm

  • Mfr # R-8844050-RPM18

  • Zoro # G011974762

product price:  $557.99
/ea
Free Shipping & Returns

Key Features

Frame
48
HP
1/2
Motor Application
OEM Replacement
Motor Design
ECM
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-8844050-RPM18
Zoro #
G011974762
UPC #
062345488592
Country of Origin
China

Dimensions

Shaft Dia.
1/2 in
Shaft Length
4 7/16 in
Overall Length
12 7/16 in
Stud Size
#10-32
Mounting Stud Length
1 in
Frame Size
48
Mounting Stud Thread Size
#10-32
Shaft Diameter
1/2 in
Wire Rope Length
12 7/16 in

Details

Frame
48
HP
1/2
Item
OEM Replacement Motor
Motor Application
OEM Replacement
Motor Design
ECM
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Thru Bolt
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Nameplate RPM
1,800
No. of Speeds
1
OEM Replacement Brand
Canarm
Phase
Single
RPM Range
1,701-1,800
Voltage
120/208-280V AC
Replacement For
ALX120-DD050EC, ALX120-UD050EC
Full Load Amps
5.7/3.4/2.6 A
Standards
CSA
Motor Service Factor
1
Full Load Amps @ 50Hz
5.7/3.4 to 2.6 A
Voltage @ 50Hz
120/208-280V AC
Usable @ 208V
Usable at 208V
Nominal Efficiency
85 %
HP @ 50Hz
1/2 hp
Voltage Compatibility
120V AC, 208V AC, 280V AC
Capacitor Required
Capacitor Not Required
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Compatible Manufacturer Part Number
ALX120-DD050EC, ALX120-UD050EC
Full Load Current @ 60 Hz
5.7/3.4/2.6 A
Product Type
OEM Replacement Motor
Number of Speeds
1
Nameplate Voltage @ 50 Hz
120/208-280V AC
Full Load Current @ 50 Hz
5.7/3.4 to 2.6 A
Nameplate Horsepower @ 50 Hz
1/2 hp
Compatible Brand
Canarm

Description

OEM Replacement Motor, Single Phase, Motor Design ECM, 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 120/208-280V AC, Full Load Amps 5.7/3.4/2.6 A, 48 Frame, OEM Replacement Brand Canarm, Replacement For ALX120-DD050EC, ALX120-UD050EC, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
