  11. Encoder, Output A, B, Z, Stainless, 60.2mm D
Shop All Rotary Encoders
Ifm

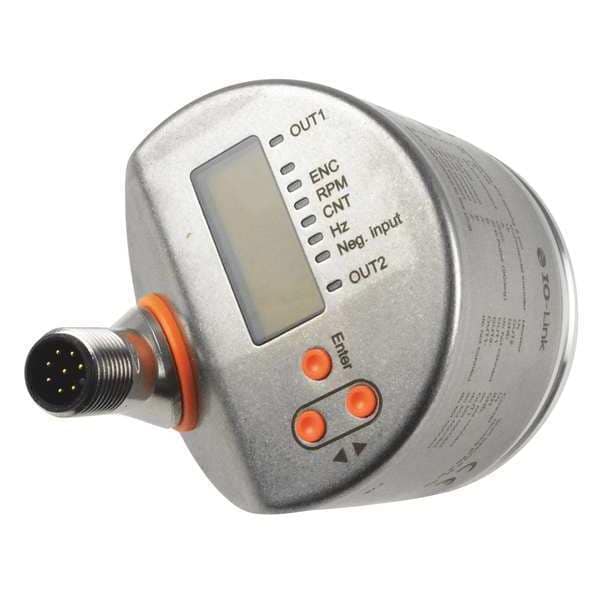

Encoder, Output A, B, Z, Stainless, 60.2mm D

product price: $305.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shaft Type Hollow
  • Pulses per Revolution 10,000
  • Output Type HTL, TTL
  • Shaft Dia. 10 mm
  • Output A, B, Z
See all product information

Product Information

Dimensions

Shaft Dia. 10 mm
Depth 60.2 mm
Diameter 58.6 mm
Width 58 mm
Overall Width 58 mm
Shaft Diameter 10 mm
Overall Diameter 2 5/16 in
Overall Depth 80.2 mm
Overall Length 93 9/10 mm

Details

Item Encoder
Shaft Type Hollow
Pulses per Revolution 10,000
Output Type HTL, TTL
Output A, B, Z
Starting Torque Max. 150 gf cm
Cable Connection M12 8 Pin Plug
Max. RPM 12,000 RPM
Power Supply 4.75-30V DC
Rotor Inertia Max.80 g cm2
Cable Entry Side/Rear
Interface Parallel
Standards CE
Resolution 10,000 nsec
Encoder Type Incremental
Maximum Speed 12,000 RPM
Encoder Style Solid Shaft
Cable Entry Location Rear, Side

Description

Encoder, Parallel, Output Type HTL, TTL, Power Supply 4.75 to 30 VDC Adapter, Shaft Type Hollow, Shaft Diameter 10 mm, Starting Torque 150 gf-cm, Rotor Inertia 80 g/sq cm, Maximum Speed 12,000 RPM, Cable Length 328 2/25 ft, Cable Connection M12 8 Pin Plug, Rear, Side Cable Entry Location, Overall Diameter 2 5/16 in, Overall Width 58 mm, Overall Depth 80.2 mm, Standards CE, Encoder Style Solid Shaft, Encoder Type Incremental, Overall Length 93 9/10 mm, Resolution 10,000 nsec
