Canarm

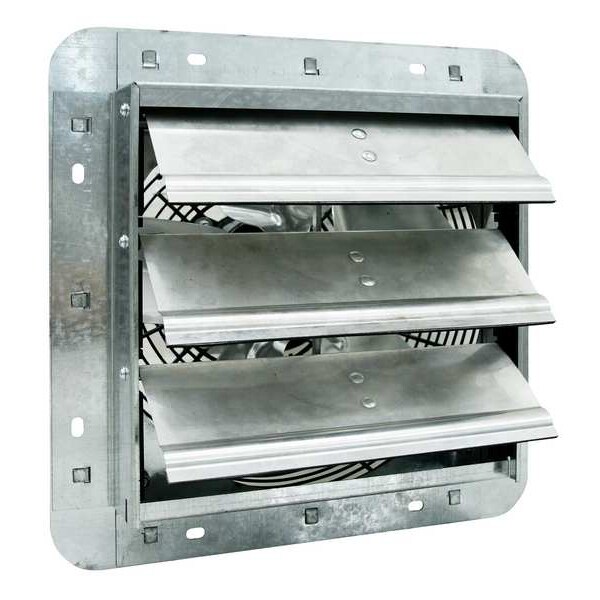

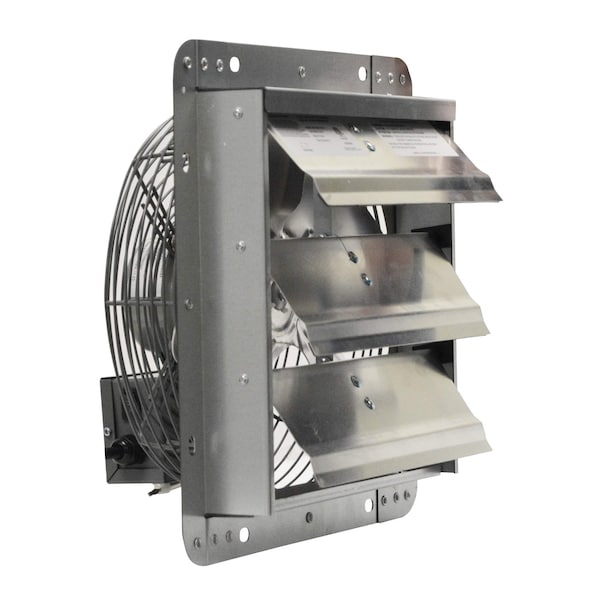

Shutter Fan, 10In Bld Dia, Galvalume, 120

product price: $89.39
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Blade Dia. 10 in
  • Fan Voltage 120
  • Number of Blades 3
  • Frame Material Aluminum
  • Exhaust/Supply Fan Motor HP 1/25 hp
See all product information

Product Information

Dimensions

Blade Dia. 10 in
Overall Depth 10 1/2 in
Blade Diameter 10 in
Overall Height 13 in
Max. Depth 10 1/2 in
Width 13 in
Overall Width 13 in
Height 13 in

Details

Exhaust/Supply Fan Item Exhaust Fan
Fan Voltage 120
Number of Blades 3
Frame Material Aluminum
Exhaust/Supply Fan Motor HP 1/25 hp
CFM @ 0.000-In. SP 600
Phase 1
Motor Type PSC
Motor Insulation Class B
Bearing Type Sleeve
Motor Enclosure Totally Enclosed Air Over
Thermal Protection Yes
Motor RPM 1520
Guard Material Chrome Plated Wire
Full Load Amps 0.56
Item Galvanized Shutter Fan
Wire Guard Finish Powder coat
Blade Material Steel
Full Load Current 0.56 A
Nameplate Voltage 120V AC
Exhaust Airflow @ 0.000 in SP 600 cfm
Frame Finish Galvalume
Max. Ambient Temp. 40 Degrees C
Square Opening Required 10 1/2 in
Ventilation Type Exhaust
Number of Speeds 3
Includes Blade; Motor; Shutter
Motor Speed 1,520 RPM
Motor Horsepower 1/25 hp
Maximum Ambient Operating Temperature 40 Degrees C

Description

Galvanized Shutter Fan, Blade Diameter 10 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 600 cfm, Frame Finish Galvalume, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Blade; Motor; Shutter, Maximum Noise Level Not Applicable
