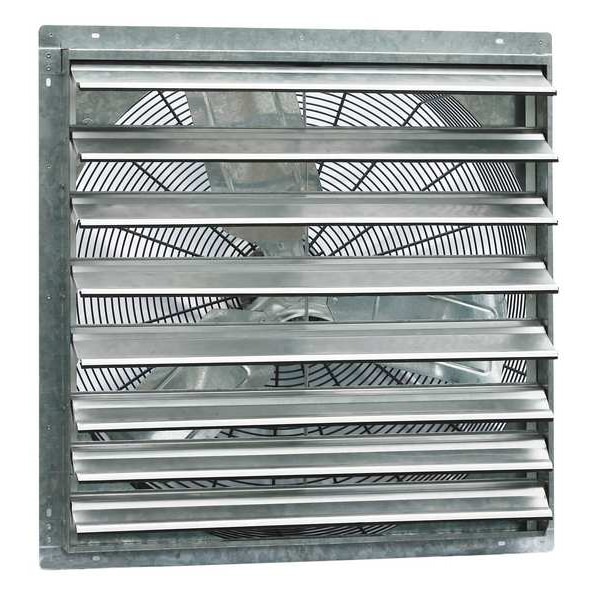

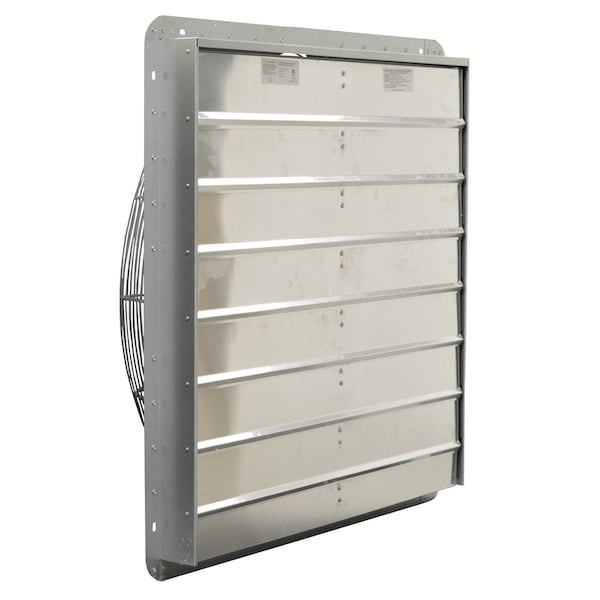

Shutter Fan, 30In Bld Dia, Galvalume, 120

Mfr # GSF2-30B
Zoro # G103541179

653.99

Additional $45.00 delivery surcharge applies per item.

Key Features

Exhaust/Supply Fan Item

Exhaust Fan

Blade Dia.

30 in

Fan Voltage

120

Number of Blades

Frame Material

Aluminum

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: GSF2-30B
Zoro #: G103541179
UPC #: 062345484044
Country of Origin: China

Dimensions

Blade Dia.: 30 in
Overall Width: 32 5/8 in
Blade Diameter: 30 in
Overall Height: 32 5/8 in
Height: 32 5/8 in
Width: 32 5/8 in
Overall Depth: 19 1/4 in
Max. Depth: 19 1/4 in

Details

Exhaust/Supply Fan Item: Exhaust Fan
Fan Voltage: 120
Number of Blades: 3
Frame Material: Aluminum
Exhaust/Supply Fan Motor HP: 1/3 hp
CFM @ 0.000-In. SP: 5088
Bearing Type: Ball
Thermal Protection: Yes
Full Load Amps: 3.3 A
Motor RPM: 825
Phase: 1
Wire Guard Finish: Powder coat
Guard Material: Chrome Plated Wire
Item: Galvanized Shutter Fan
Motor Enclosure: Totally Enclosed Air Over
Motor Type: PSC
Motor Insulation: Class B
Square Opening Required: 31 in
Frame Finish: Galvalume
Ventilation Type: Exhaust
Nameplate Voltage: 120V AC
Includes: Adjustable Thermostat and Bypass, Blade, Motor, Shutter, Temperature
Full Load Current: 3.3 A
Motor Horsepower: 1/3 hp
Blade Material: Steel
Number of Speeds: 2
Maximum Ambient Operating Temperature: 104 Degrees F
Motor Speed: 825 RPM
Exhaust Airflow @ 0.000 in SP: 5,088 cfm
Max. Ambient Temp.: 40 Degrees C

Description

Galvanized Shutter Fan, Blade Diameter 30 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 5,088 cfm, Frame Finish Galvalume, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Adjustable Thermostat and Bypass, Blade, Motor, Shutter, Temperature, Maximum Noise Level Not Applicable
