Shop CANARM

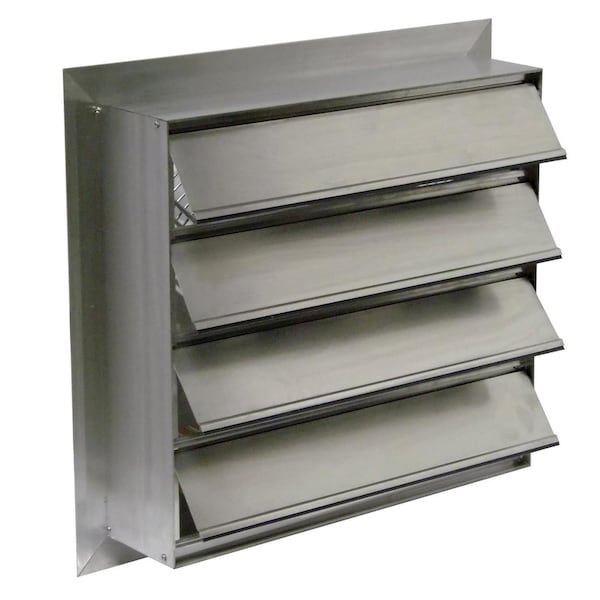

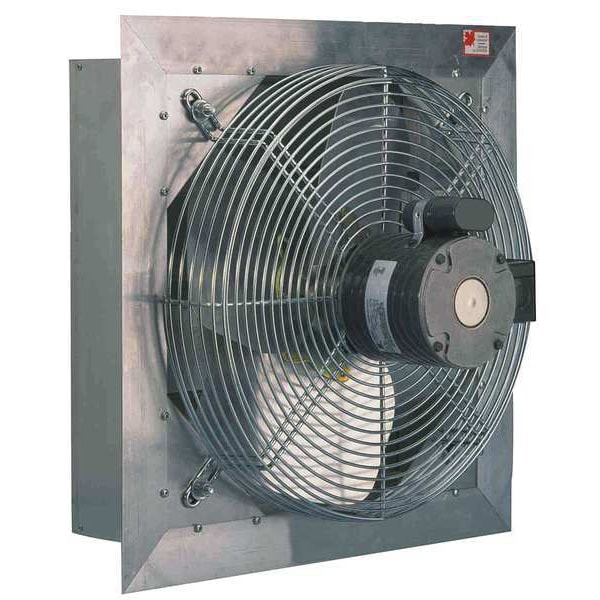

Shutter Mount Exhaust Fan, 16", Variable Speed, 1850 cfm

  • Mfr # AX16-1VHE

  • Zoro # G8489835

product price:
$
413.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
16 in
Number of Speeds
1
Fan Voltage
115V AC
CFM @ 0.000-In. SP
1850
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AX16-1VHE
Zoro #
G8489835
UPC #
062345205809
Country of Origin
Canada
Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
115V AC
CFM @ 0.000-In. SP
1850
Exhaust/Supply Fan Motor HP
1/15 hp
Square Opening Required
10-1/2 to 20 in
Item
Shutter Mount Exhaust Fan
Motor Enclosure
Totally Enclosed Air Over
Number of Blades
3
Full Load Amps
1.0 A
Blade Material
Aluminum
Includes
Shutter
Guard Material
Steel
Motor RPM
1450
Motor Type
3-Phase
Motor Insulation
Class B
Speed Control Item Number
Mfr No. MC3
Wire Guard Finish
Chrome
Phase
1
Standards
OSHA Compliant
Bearing Type
Sleeve
Drive Package Included
No
Frame Finish
Aluminum
CFM @ 0.250-In. SP
1550
Frame Material
Aluminum
Thermal Protection
Auto
CFM @ 0.125-In. SP
1700
Hz
60
Max. Ambient Temp.
104 Degrees F
Voltage
115V
Vent Design
Ductless
Maximum Airflow
1,850 cfm
Exhaust Airflow @ 0.000 in SP
1,850 cfm
Method of Construction
Stamped
Speed Controllable
Yes
Maximum Ambient Operating Temperature
104 Degrees F
Discharge Direction
Horizontal
Includes Motor
Yes
Control Type
Rotary Dial
Assembled
Assembled
Exhaust Airflow @ 0.125 in SP
1,700 cfm
Nameplate Voltage
115V AC
Noise Level @ 0.100 in SP @ 5 ft
11.3 sones
Housing Finish
Aluminum
Includes Grill
No
Motor Horsepower
1/15 hp
Mounting Orientation
Horizontal
Exhaust Airflow @ 0.250 in SP
1,550 cfm
Includes Dehumidistat
No
Ventilation Type
Exhaust
Guard Type
Intake
Supply Airflow @ 0.000 in SP
1,850 cfm
Fan Style
Shutter-Mounted
Wattage
115 W
Maximum Noise Level
12 sones
Frequency
50 Hz
Motor Speed
1,450 RPM
Exhaust Airflow @ 0.100 in SP
1,750 cfm
Electrical Connection
Hardwired
Noise Level @ 0.000 in SP @ 5 ft
12 sones
Full Load Current
1 A
Number of Fans
1
Guard Finish
Chrome
Housing Material
Aluminum
Drive Type
Direct Drive
Speed Control
23N628

Description

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 16 in, Blade Material Aluminum, Control Type Rotary Dial, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,850 cfm, For Cut-Out Height 18 in, For Cut-Out Width 18 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Material Aluminum, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Housing Material Aluminum, Housing Finish Aluminum, Includes Shutter
