  9. Upblast Exhauster, 1 Phase, 3/4 hp

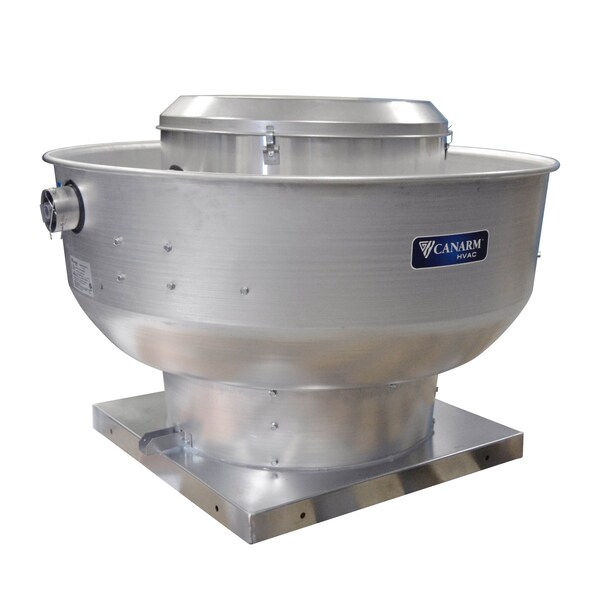

Canarm Upblast Exhauster, 1 Phase, 3/4 hp ALX165-UD075EC - main

Upblast Exhauster, 1 Phase, 3/4 hp

  • Mfr # ALX165-UD075EC

  • Zoro # G007963992

product price: $1,067.99
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.

Key Features

Number of Speeds
Variable
Wheel Material
Aluminum
Standards
UL 705
Wheel Type
Backward Inclined
Drive Type
Direct Drive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ALX165-UD075EC
Zoro #
G007963992
UPC #
062345375601
Country of Origin
Canada

Dimensions

Base Height
2 in
Overall Height
27 1/8 in
Base Length
24 3/4 in
Base Width
24 3/4 in
Wheel Diameter
16 1/2 in
Overall Width
37 1/2 in
Cutout Length
20.8 in
Overall Depth
24 3/4 in

Details

Number of Speeds
Variable
Wheel Material
Aluminum
Standards
UL 705
Wheel Type
Backward Inclined
Drive Type
Direct Drive
Motor Type
Electronically Commutated
Housing Material
Aluminum
Speed Controllable
Yes
Phase
1
Item
Upblast Exhauster
Series
ALX-UD-EC
Exhaust Airflow @ 0.500 in SP
2,579 cfm
Frequency
50/60 Hz
Features
On-Board Speed Adjustment Allows Simple Setup and Balancing with LED Display, Quick Release Latches for Easy Motor Access
Exhaust Airflow @ 0.000 in SP
2,965 cfm
Exhaust Airflow @ 0.250 in SP
2,780 cfm
For High-Static Pressure Applications
Yes
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Maximum Static Pressure
1 1/2 in wc
Electrical Connection
Wire Leads
Motor Horsepower
3/4 hp
Includes Motor
Yes
For Air Type
Clean Air
Includes Drive Package
Yes
Weight
100 lb
Mount Type
Roof Curb
Airflow @ 0.000 in SP
2,965 cfm
Housing Material Fabrication
Spun
High-Efficiency Motor
Yes
Motor Speed
1,350 RPM
Power Source
Electric Corded
Base Shape
Square
Maximum Inlet Air Temperature
300 Degrees F
Nameplate Voltage
115/208-230V AC
Motor Enclosure
Open Dripproof
Assembly
Assembled

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 24 3/4 in, Base Length 24 3/4 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 2,965 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 3/4 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum
