Shop CANARM

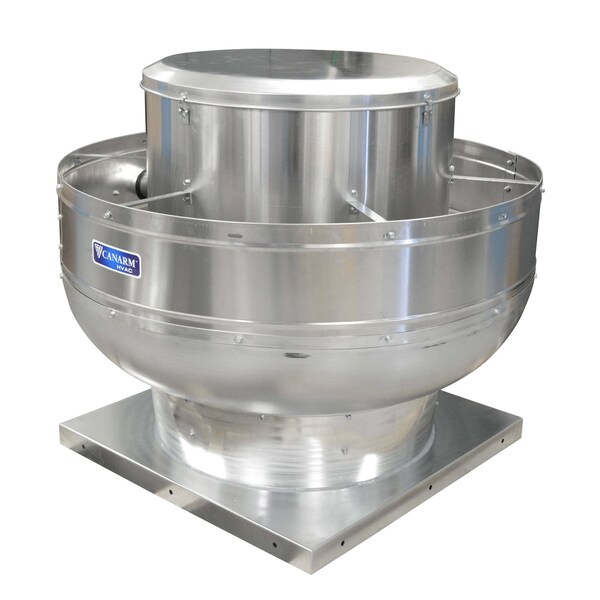

Upblast Exhauster, 3 Phase, 1-1/2 hp

  • Mfr # ALX210UBT30150P

  • Zoro # G507963669

product price:
$
1,721.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Number of Speeds
1
Speed Controllable
Yes
Wheel Material
Aluminum
Phase
3
Overall Height
36 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ALX210UBT30150P
Zoro #
G507963669
UPC #
062345391007
Country of Origin
Canada
Number of Speeds
1
Speed Controllable
Yes
Wheel Material
Aluminum
Phase
3
Drive Type
Belt Drive
Standards
UL 705
Includes
Drives, Motors, Wired Disconnect
Housing Material
Aluminum
Item
Upblast Exhauster
Wheel Type
Backward Inclined
Includes Drive Package
Yes
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Airflow @ 0.000 in SP
4,792 cfm
Sound Level
21 sones @ 1/2 in SP
Exhaust Airflow @ 0.375 in SP
4,336 cfm
For Air Type
Kitchen Air
Includes Motor
Yes
Weight
178 lb
Power Source
Electric Corded
Electrical Connection
Wire Leads
Exhaust Airflow @ 0.125 in SP
4,640 cfm
Brake Horsepower
1 19/50 hp
Features
Quick Release Latches for Easy Motor Access, Units upto 24 in can be Wall Mounted
Mount Type
Roof Curb
Housing Material Fabrication
Spun
Maximum Static Pressure
1 1/4 in wc
Motor Horsepower
1 1/2 hp
Motor Speed
1,132 RPM
Exhaust Airflow @ 0.250 in SP
4,488 cfm
Assembly
Assembled
Exhaust Airflow @ 0.000 in SP
4,792 cfm
Series
ALX-UB
Exhaust Airflow @ 0.500 in SP
4,152 cfm
Motor Enclosure
Open Dripproof
High-Efficiency Motor
No
Maximum Inlet Air Temperature
300 Degrees F
Base Shape
Square
Nameplate Voltage
575V AC
For High-Static Pressure Applications
Yes
Power Source - TS Only
Electric Corded
Power Source - old
Electric Corded

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 33 1/8 in, Base Length 33 1/8 in, Base Shape Square, Maximum Static Pressure 1 1/4 in wc, Exhaust Airflow @ 0.000 in SP 4,792 cfm, Nameplate Voltage 575V AC, Phase 3, Motor Horsepower 1 1/2 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
