Shop CANARM

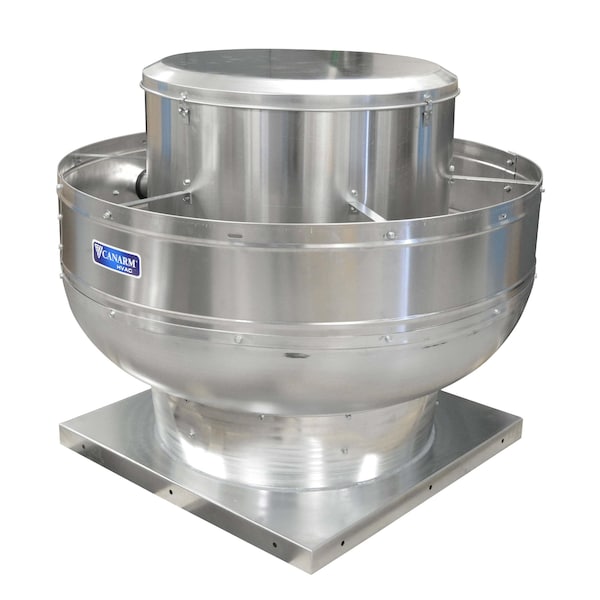

Upblast Exhauster, 3 Phase, 3 hp

  • Mfr # ALX245UBT30300M

  • Zoro # G107963649

product price:
$
2,035.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Number of Speeds
1
Overall Height
37 in
Drive Type
Belt Drive
Speed Controllable
Yes
Base Height
2.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ALX245UBT30300M
Zoro #
G107963649
UPC #
062345391083
Country of Origin
Canada

Dimensions

Overall Height
37 in
Base Height
2.5 in
Base Length
33 1/8 in
Base Width
33 1/8 in
Wheel Diameter
24 1/2 in
Cutout Length
29 in
Overall Width
43 3/4 in
Overall Depth
33 1/8 in

Details

Number of Speeds
1
Drive Type
Belt Drive
Speed Controllable
Yes
Housing Material
Aluminum
Wheel Type
Backward Inclined
Phase
3
Item
Upblast Exhauster
Includes
Drives, Motors, Wired Disconnect
Wheel Material
Aluminum
Standards
UL 705
Motor Speed
1,132 RPM
Power Source
Electric Corded
Sound Level
28 sones @ 1/2 in SP
Features
Quick Release Latches for Easy Motor Access, Units upto 24 in can be Wall Mounted
Exhaust Airflow @ 0.500 in SP
6,146 cfm
Mount Type
Roof Curb
Weight
183 lb
Maximum Static Pressure
1 1/2 in wc
Includes Drive Package
Yes
Airflow @ 0.000 in SP
6,913 cfm
For Air Type
Kitchen Air
Exhaust Airflow @ 0.250 in SP
6,562 cfm
Exhaust Airflow @ 0.125 in SP
6,738 cfm
Motor Horsepower
3 hp
Assembly
Assembled
Housing Material Fabrication
Spun
Series
ALX-UB
Exhaust Airflow @ 0.375 in SP
6,338 cfm
Brake Horsepower
2 1/5 hp
Exhaust Airflow @ 0.000 in SP
6,913 cfm
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Electrical Connection
Wire Leads
Includes Motor
Yes
Base Shape
Square
High-Efficiency Motor
No
Maximum Inlet Air Temperature
300 Degrees F
For High-Static Pressure Applications
Yes
Motor Enclosure
Open Dripproof
Nameplate Voltage
230/460V AC
Power Source - TS Only
Electric Corded
Power Source - old
Electric Corded

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 33 1/8 in, Base Length 33 1/8 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 6,913 cfm, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 3 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
