Shop CARBOLITE

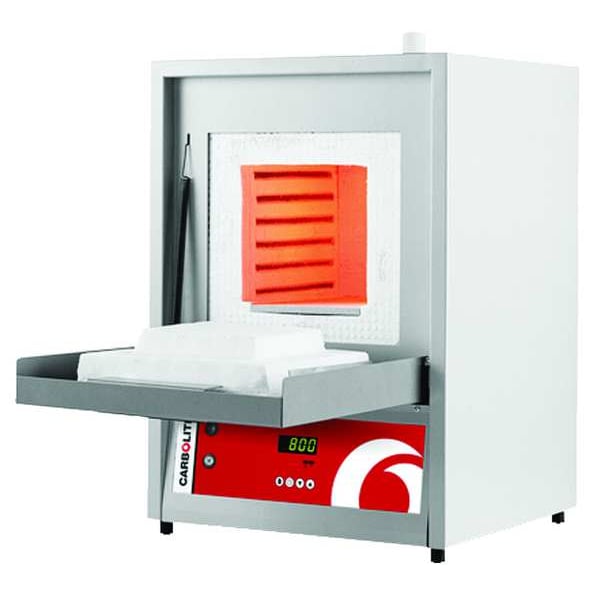

Box Furnace, 6.5inHx7inWx8.25inD

  • Mfr # ELF11006-230SN

  • Zoro # G4999766

product price:
$
4,243.99
/ea
Free Shipping & Returns

Key Features

Overall Depth
16 1/2 in
Overall Height
22 3/4 in
Overall Width
16 in
Convection Type
Gravity
Capacity
0.21 cu ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ELF11006-230SN
Zoro #
G4999766
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Depth
16 1/2 in
Overall Height
22 3/4 in
Overall Width
16 in
Chamber Depth
8.26 in
Manufacturers Warranty Length
2 yr
Overall Dimensions
22.75"H x 16.25"W x 16.50"D
Inside Usable Dimensions
6.5"Al x 7"An x 8.25"Prof.
Chamber Width
7.08 in
Chamber Height
6.49 in
Interior Width
7 in
Interior Depth
8 1/4 in
Interior Height
6 1/2 in

Details

Item
ELF Chamber Furnace
Convection Type
Gravity
Capacity
0.21 cu ft
Volume
0.21 cu ft
Wattage
2,000 W
Voltage
208/240V
Features
Drop Down Door with Air Gap to Minimize External Temperature
Standards
CE
Programmable
Not Programmable
Temp. Range
Up to 1100 Degrees C
Housing Material
Steel
Temp. Range (F)
1832 Degrees
Temp. Uniformity
+/-5 Degrees C
Preheat Time
35 min
Thermostat
Digital, Single Set-Point Controller, Type K Thermocouple
Watts
220 W
Material
Resistive, Wire-Wound Heating Elements, Low Mass Ceramic Insulation
Power Consumption
2000W
Capacity (Cu.-Ft.)
0.212
Hz
60
Special Features
35 Minute Heat-Up Time, Drop Down Door, Tilt Forward
Number of Doors
1
Power Requirement
208/240V, 50/60 Hz, 1-Phase
Capacity (ML)
6,000
Includes
Single Ramp
Door Material
Ceramic
Temp. Range (C)
1000 Degrees
Number of Shelves
0
Chamber Material
Refratory Ceramic
Product Type
ELF Chamber Furnace
Frequency
60 Hz
Number of Shelves Included
0
Timer Duration - Maximum
28 min
Vacuum Pump Required
No
Temperature Uniformity
+/-5 Degrees C
Temperature Setting - Maximum
1,100 Degrees C
Interior Material
Ceramic
Housing Finish
Zinc Plated
Temperature Setting - Minimum
Ambient +20 Degrees C
Number of Temperature Settings
Any Temperature Throughout the Full Range
Plug Type
No Plug Provided
Display Type
Digital
Number of Displays
1
Control Type
PID Temperature
Color
Gray
Temperature Accuracy Tolerance
+/-1 Degrees C

Description

ELF Chamber Furnace, Convection Type Gravity, Temp. Range (C) 1000 Degrees , Temp. Range (F) 1832 Degrees , Overall Height 22 3/4 in, Overall Width 16 in, Overall Depth 16 1/2 in, Chamber Height 6.49 in, Chamber Width 7.08 in, Chamber Depth 8.26 in, Hz 60, Voltage 208/240V, Watts 220 W, Capacity (Cu.-Ft.) 0.212, Capacity (ML) 6,000, Programmable Not Programmable, Temp. Uniformity +/-5 Degrees C, Preheat Time 35 min, Chamber Material Refratory Ceramic, Door Material Ceramic
