Shop CARBOLITE

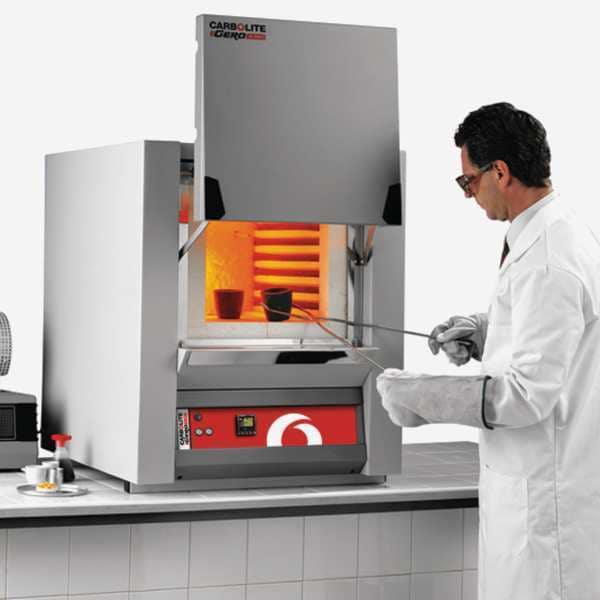

Heavy Duty Box Furnace 1300C 36L 208/240

  • Mfr # CWF13036-230SN
  • Zoro # G0122401
product price:
$
13,627.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
31 in
Overall Height
31 7/8 in
Overall Width
27 in
Convection Type
Gravity
Capacity
1.27 cu ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CWF13036-230SN
Zoro #
G0122401
UPC #
-
Country of Origin
United Kingdom
Item
RHF High Temperature Furnace
Convection Type
Gravity
Capacity
1.27 cu ft
Volume
1.27 cu ft
Wattage
9,000 W
Voltage
208/240V
Features
Energy Efficient Low Thermal Mass Insulation
Standards
CE
Programmable
Not Programmable
Temp. Range (F)
2372 Degrees
Number of Doors
1
Thermostat
Digital, Single Set-Point Controller, Type R Thermocouple
Temp. Range
Up to 1300 Degrees C
Watts
9,000 W
Capacity (ML)
36,000
Temp. Uniformity
+/-5 Degrees C
Special Features
47 Minute Heat-Up Time, Heavy Duty Construction, Vertical Lift Door
Housing Material
Steel
Temp. Range (C)
1300 Degrees
Chamber Material
Refratory Ceramic
Includes
Single Ramp
Power Consumption
9000 Watts
Preheat Time
47 min
Material
Resistive, Wire-Wound Heating Elements
Hz
60 Hz
Capacity (Cu.-Ft.)
1.27
Door Material
Ceramic
Power Requirement
208/240V, 50/60 Hz, 1-Phase
Display Type
Digital
Frequency
60 Hz
Housing Finish
Zinc Plated
Product Type
RHF High Temperature Furnace
Temperature Uniformity
+/-5 Degrees C
Timer Duration - Maximum
47 min
Interior Material
Ceramic
Temperature Setting - Maximum
1,300 Degrees C
Number of Shelves
0
Number of Temperature Settings
Any Temperature Throughout the Full Range
Control Type
PID Temperature
Number of Shelves Included
0
Temperature Accuracy Tolerance
+/-1 Degrees C
Color
Gray
Number of Displays
1
Temperature Setting - Minimum
Ambient +20 Degrees C
Plug Type
No Plug Provided
Vacuum Pump Required
No

Description

RHF High Temperature Furnace, Convection Type Gravity, Temp. Range (C) 1300 Degrees , Temp. Range (F) 2372 Degrees , Overall Height 31 7/8 in, Overall Width 27 in, Overall Depth 31 in, Chamber Height 9.84 in, Chamber Width 12.59 in, Chamber Depth 17.71 in, Hz 60, Voltage 208/240V, Watts 9,000 W, Capacity (Cu.-Ft.) 1.27, Capacity (ML) 36,000, Programmable Not Programmable, Temp. Uniformity +/-5 Degrees C, Preheat Time 47 min, Chamber Material Refratory Ceramic, Door Material Ceramic
