Shop CARBOLITE

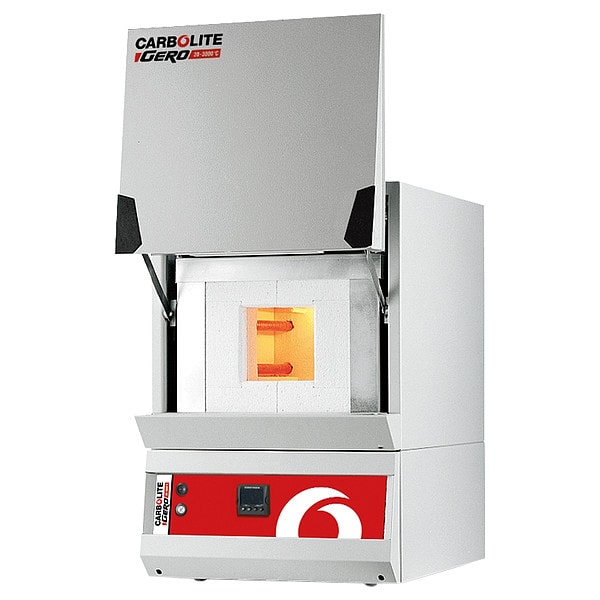

High Temp Box Furnace 1500C 2.9L 208/240

  • Mfr # RHF1503-230SN
  • Zoro # G0122499
product price:
$
12,864.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
24 in
Overall Height
25 3/4 in
Overall Width
17 in
Convection Type
Gravity
Capacity
0.1 cu ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RHF1503-230SN
Zoro #
G0122499
UPC #
-
Country of Origin
United Kingdom
Item
RHF High Temperature Furnace
Convection Type
Gravity
Capacity
0.1 cu ft
Volume
0.1 cu ft
Wattage
4,500 W
Voltage
208/240V
Features
Low Thermal Mass Insulation for High Energy Efficiency
Standards
CE
Programmable
Not Programmable
Door Material
Ceramic
Chamber Material
Refratory Ceramic
Power Consumption
4500 Watts
Includes
Single Ramp
Temp. Range (C)
1500 Degrees
Preheat Time
45 min
Capacity (ML)
3,000
Temp. Range
Up to 1500 Degrees C
Housing Material
Steel
Power Requirement
208/240V, 50/60 Hz, 1-Phase
Special Features
45 Minute Heat-Up Time, Vertical Lift Door
Thermostat
Digital, Single Set-Point Controller, Type R Thermocouple
Watts
1,495 W
Temp. Uniformity
+/-5 Degrees C
Material
Silicon Carbide Heating Elements
Hz
60 Hz
Number of Doors
1
Temp. Range (F)
2732 Degrees
Capacity (Cu.-Ft.)
0.102
Frequency
60 Hz
Temperature Uniformity
+/-5 Degrees C
Temperature Setting - Maximum
1,500 Degrees C
Display Type
Digital
Timer Duration - Maximum
45 min
Interior Material
Ceramic
Housing Finish
Zinc Plated
Product Type
RHF High Temperature Furnace
Number of Temperature Settings
Any Temperature Throughout the Full Range
Plug Type
No Plug Provided
Temperature Accuracy Tolerance
+/-1 Degrees C
Number of Displays
1
Temperature Setting - Minimum
Ambient +20 Degrees C
Vacuum Pump Required
No
Number of Shelves Included
0
Control Type
PID Temperature
Number of Shelves
0
Color
Gray

Description

RHF High Temperature Furnace, Convection Type Gravity, Temp. Range (C) 1500 Degrees , Temp. Range (F) 2732 Degrees , Overall Height 25 3/4 in, Overall Width 17 in, Overall Depth 24 in, Chamber Height 4.72 in, Chamber Width 4.72 in, Chamber Depth 8.07 in, Hz 60, Voltage 208/240V, Watts 1,495 W, Capacity (Cu.-Ft.) 0.102, Capacity (ML) 3,000, Programmable Not Programmable, Temp. Uniformity +/-5 Degrees C, Preheat Time 45 min, Chamber Material Refratory Ceramic, Door Material Ceramic
