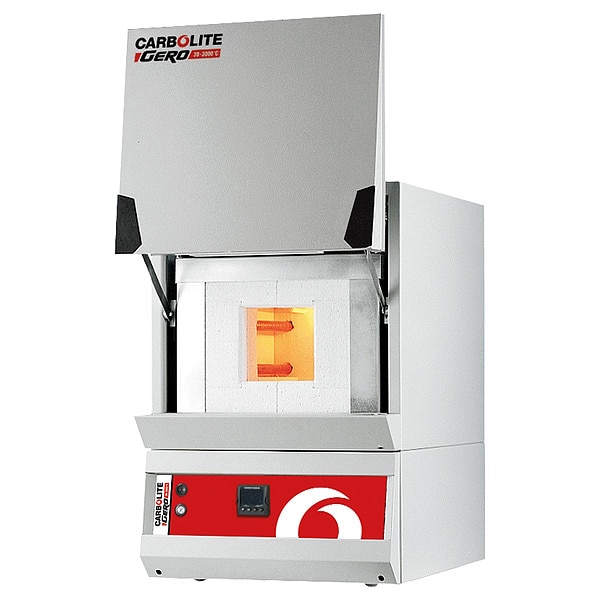

High Temp Box Furnace 1400C 7.8L 208/240

  • Zoro #: G0122429
  • Mfr #: RHF1408-230SN

$11,044.62

  • Temp. Uniformity: +/-5 Degrees C
  • Temp. Range: Up to 1400 Degrees C
  • Overall Dimensions: 27.75"H x 20"W x 26.5"D
See full product details
  • This item ships free.
  • Shipping & Returns
  • Sign up for Zmail and get 15% off your first order

Carbolite #RHF1408-230SN Specifications

  • Zoro #: G0122429
  • Mfr #: RHF1408-230SN
Temp. Uniformity: +/-5 Degrees C Temp. Range: Up to 1400 Degrees C
Overall Dimensions: 27.75"H x 20"W x 26.5"D Material: Silicon Carbide Heating Elements
Standards: CE Capacity (Cu.-Ft.): 0.275
Hz: 60 Voltage: 220-240
Power Consumption: 8000 Watts Chamber Material: Refratory Ceramic
Includes: Single Ramp Rate to Set-Point Controller with Timer Special Features: Vertical Lift Door, 22 Minute Heat-Up Time
Capacity (ML): 8000 Watts: 1700
Temp. Range (F): 2552 Power Requirement: 208/240V, 50/60 Hz, 1-Phase
Thermostat: Digital, Single Set-Point Controller, Type R Thermocouple Number of Doors: 1
Manufacturers Warranty Length: 2 years Temp. Range (C): 1400
Preheat Time: 22 min. Programmable: No
Inside Usable Dimensions: 6.75"H x 6.75"W x 10.75"D Overall Depth: 26.5"
Convection Type: Natural Gravity Overall Height: 27.75"
Chamber Width: 170" Door Material: Refratory Ceramic
Housing Material: Zinc Plated Mild Steel Chamber Height: 170"
Chamber Depth: 10.62" Item: Box Furnace
Overall Width: 20" Country of Origin (subject to change): United Kingdom
Feedback Help us improve our product information

Description

Box Furnace, Convection Type Natural Gravity, Temp. Range (C) 1400, Temp. Range (F) 2552, Overall Height 27.75 In., Overall Width 20 In., Overall Depth 26.5 In., Chamber Height 170 In., Chamber Width 170 In., Chamber Depth 10.62 In., Hz 60, Voltage 220-240, Watts 1700, Capacity (Cu.-Ft.) 0.275, Capacity (ML) 8000, Programmable No, Temp. Uniformity +/-5 Degrees C, Preheat Time 22 min., Chamber Material Refratory Ceramic, Door Material Refratory Ceramic, Housing Material Zinc Plated Mild Steel
